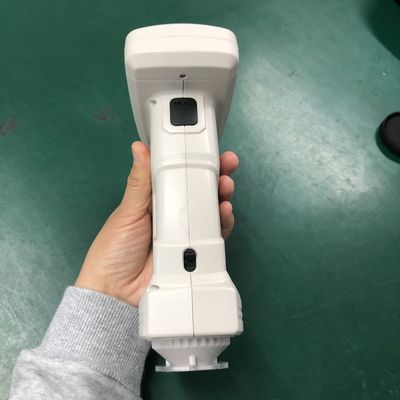

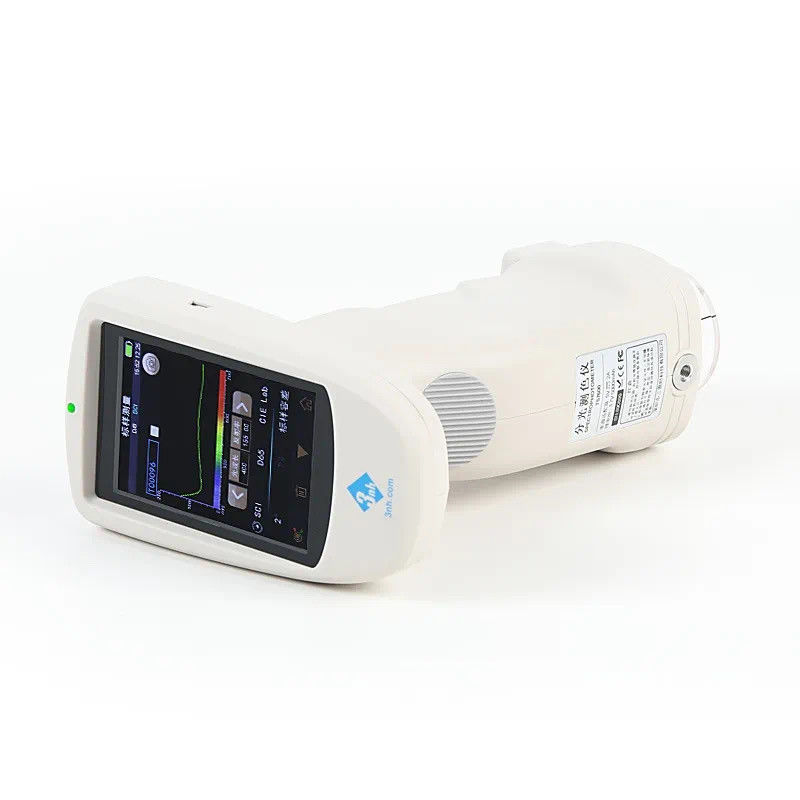

3nh ST60 Digital Textile Spectrophotometer Customized OEM Support for Sportswear

Model

ST60 spectrophotometer

Optical Geometry

D/8 (diffused illumination, 8-degree viewing angle)

SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source

Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristic

Adopt 3nh TS series core technology, 4 measuring apertures for accurate color analysis and transmission in laboratory

It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing
and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.

Integrating Sphere Size

Φ40mm

Light Source

Combined full spectrum LED light source, UV light source

Spectrophotometric Mode

Flat Grating

Sensor

Silicon photodiode array (double row 26 groups)

Wavelength Range

360~700nm

Wavelength Interval

10nm

Measured Reflectance Range

0-200%

Measuring Aperture

4 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;

Specular Component

SCI&SCE

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index

Spectral reflectance,WI(ASTM E313,CIE/ISO, AATCC, Hunter, TaubeBergerStensby),

YI(ASTM D1925,ASTM 313),

Metamerism Index MI,

Staining Fastness, Color Fastness, Color Strength, Opacity,

8° Glossiness,555 tone classification, Carbon (My,dM), color density CMYK(A,T,E,M), Tint, Munsel chroma index (part of the
function is realized by PC software)

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, able to customized light source
(total 41 kinds of light source, Partially realize through the PC software /APP software)

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color simulation, Color Offset

Measuring Time

About 1.5s

Repeatability

Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after
white calibration)

Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)

Inter-instrument Error

MAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)

Display Resolution

0.01

Measurement Mode

Single Measurement, Average Measurement(2-99times)

Locating Method

Camera Locating,stabilizer cross position

Dimension

L*W*H=129X76X217mm

Weight

Approx 600g

Battery

Li-ion battery, 8800 measurements within 8 hours

Illuminant Life Span

10 years, more than 1.5 million times measurements

Displayed Data

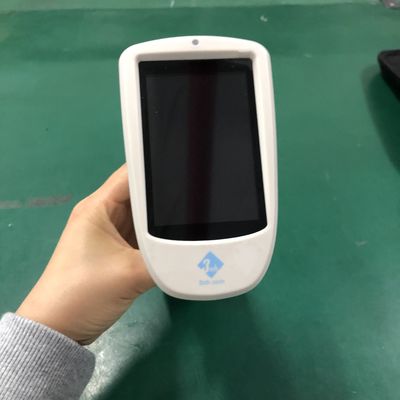

3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB, Bluetooth ® 5.0

Data Storage

Standard 1000 Pcs, Sample 30000 Pcs, APP/PC mass storage

Software Support

Andriod,IOS,Windows,Harmony OS,Wechat applets

Language

Simplified Chinese, English, traditional Chinese

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

-20~50℃, 0~85%RH (no condensing)

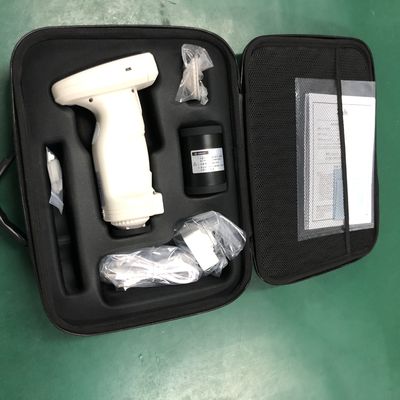

Standard Accessory

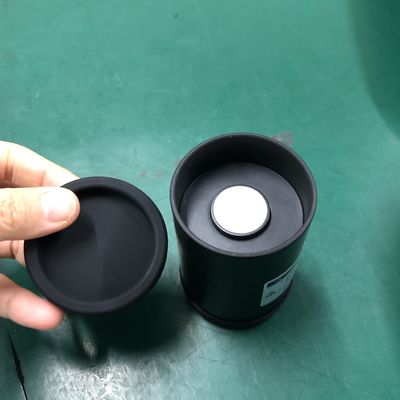

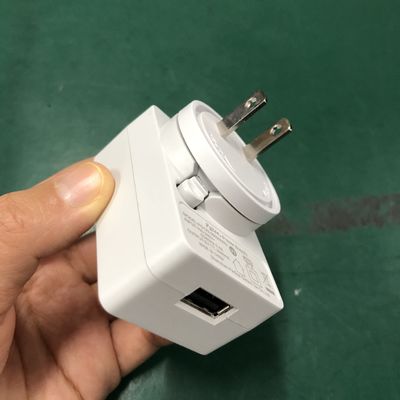

Power Adapter, USB cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective
Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.
