MS3006 Spectrophotometer - Reliable Flake & Glitter Measurement for Automotive & Industrial QC

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	Li-ion Battery, 5000 Measurements Within 8 Hours	Accuracy:	0.01
Voltage:	Other	Type:	Testing Machine
Application:	Plastic Testing, Laboratory Testing, Lab Testing	Protection Class:	Ip55
Industry Test Instrument:	Color Measurement Equipment

Color Space

CIE LAB L(Lightness): 0 is black,100 is white a(Red-Green): positive values are red; negative values are green and 0 is neutral b(Blue-Yellow): positive values are yellow,negative values are blue abd 0 is neutral CIE LCH L: Lightness,value is the same in each scale C: Chroma H:Hue Angle dE Total Color difference Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Delta E	Meaning
0~1	A normally invisible difference
1~2	very small difference, only obvious to a trained eye
2~3.5	Medium difference, also obvious to an untrained eye
3.5~5	An obvious difference
>6	A very obvious difference

Products Description

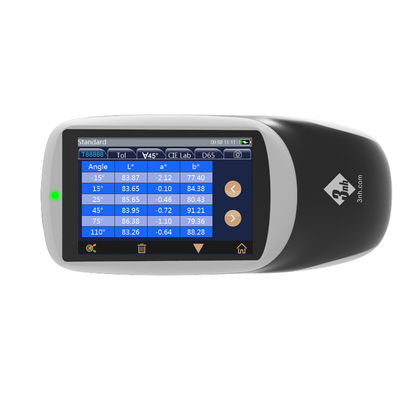

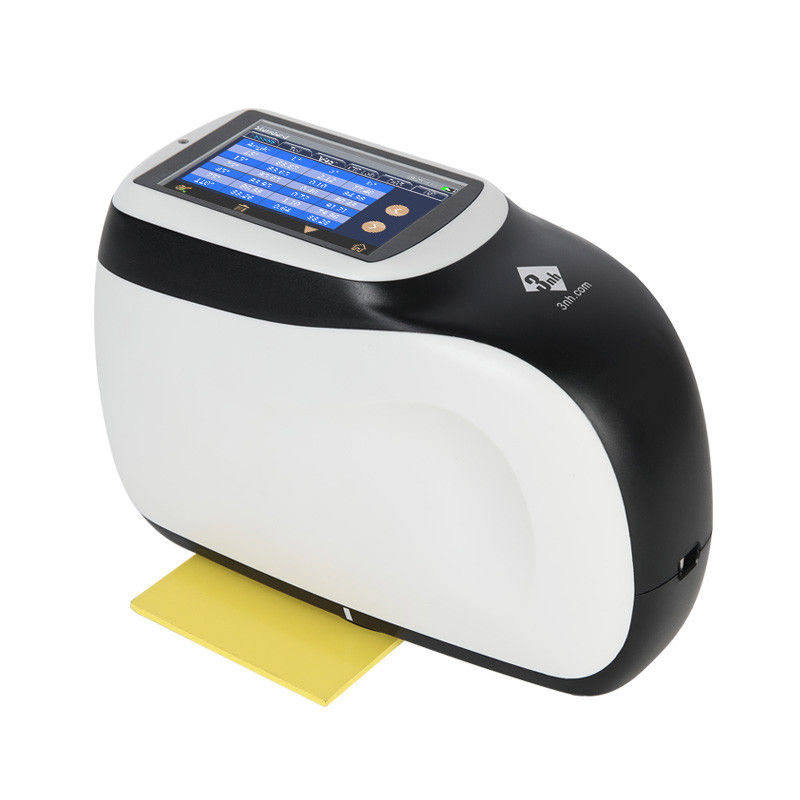

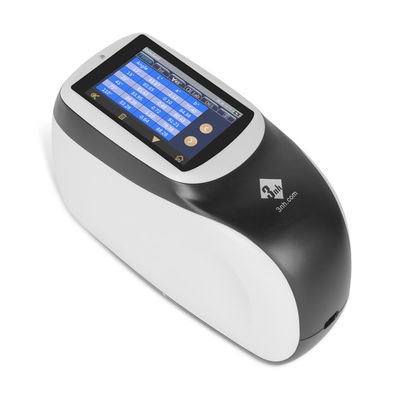

MS3006 Multi-angle spectrophotometer

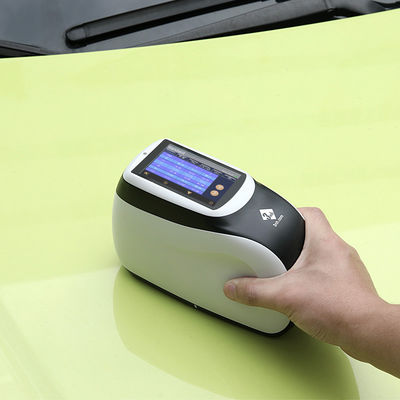

MS3006 Multi-angle spectrophotometer adopts Industrial-grade MCU with 6 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. The smooth operating system and superior performance of the optical system allow the MS3006 multi-angle spectrometer to provide repeatability and reproducibility of Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) measurement. 3nh Multi-angle spectrophotometer MS3006 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 6 measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

Model	MS3006
Measurement Geometry	6 measurement angles (6 illumination sources, 1 receivers)
Measure Angle	45° Receiver： 45as-15°,45as15°,45as25°,45as45°,45as75°,45as110° Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
Application	Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source	Full spectrum LED light source with blue enhancement
Lamp Life	5 years, 3 million times measurements
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400nm-700nm
Wavelength Interval	10nm
Measurement Range	0~600%
Semiband Width	10nm
Measuring Aperture	Illumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
Color Space	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula	ΔEab,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index	Flop Index, Int-Em
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

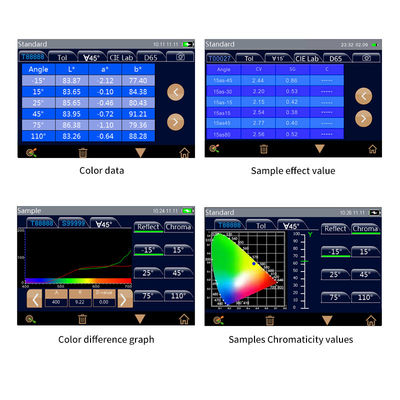

Display	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time	Approx. 1 second for one angle Approx. 6 seconds for all angles
Repeatability	Spectral reflectance: Standard deviation within 0.08% Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility	ΔE<0.10,avg on the gray tile of BCRA tile set ΔE<0.25,avg on the color BCRA tile set
Inter-instrument Error	0.2ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters	Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement	6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80° 15d Diffuse coarseness(DC)
Effect Repeatability	Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility	Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations) (avg on reference Series II BCRA tile set) Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode	Pressure sensing trigger, button trigger, software trigger
Measuring Mode	Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode	Color camera preview
Dimension	LWH=195X83X128mm
Weight	About 1Kg
Power	lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB, Bluetooth 5.0
Data Storage	1000 pcs Standards,4000 pcs Samples
Language	Simplified Chinese, Traditional Chinese, English
Operating Environment	10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment	-20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration	Built-in white board parameters, external white board, black light trap, color board
Calibration Interval	4 hours,8 hours,24 hours,Startup calibration
Standard accessories	Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory	Micro-printer
Notes	Technical parameters are for reference only, subject to actual sales products.

Application

It is used in plastic electronics, paint and coatings, textile printing and dyeing, printed paper products, automobiles, medical care, cosmetics and food industries, and also are widely used in scientific research institutions and laboratories.

Product packaging

Company Profile

3nh Group is a high-tech enterprise specializing in the development, production, sales and service in the field of color management. With more than 20 years of development history, focusing on color management equipment and solutions; It has more than 20 offices across the country, and has set up two production bases in Guangdong and Jiangxi. After years of in-depth research, it has launched color difference meter, gloss meter, haze meter, etc., and independently developed color management color matching software (PeColor), color matching system, computer color matching meter, image test card and other products. Widely used in plastic electronics, paint ink, textile and clothing printing and dyeing, printed paper products, food, medicine, cosmetics, optical image detection and other industries as well as scientific research, schools, laboratories and other fields. Products are exported to all over the world, and can be customized for customers, the majority of customers praise.

Certifications

Guangdong Threenh Technology Co.,Ltd.passed CE, ISO 9001, ROHS, FCC, TUV certifications.

Exhibition

We join all over the world exhibitions, including China plas, China coating, Printing and Packaging, and CIOE etc.

FAQ

Frequently Asked Questions
1. Which brands are 3nh models to equal?
Answer: 3nh color test instruments compared with KONICA MINOLTA and X-rite and BYK.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. We offer OEM&ODM service for free.
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
