Name: NHG60M Economic GlossMeter Small Aperture Spherical Surface with Auto-Calibration Testing Equipment
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Single angle gloss meter

NHG60M Economic GlossMeter Small Aperture Spherical Surface with Auto-Calibration Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	44	Voltage:	100-240
Type:	Testing Machine	Application:	Paper Testing, Lab Testing, Laboratory Testing
Measure Angle:	60	Measurement Range:	0~1000gu
Division Value:	0.1gu	Displayed Accuracy:	0.01
Measuring Time:	0.5s

Product Description

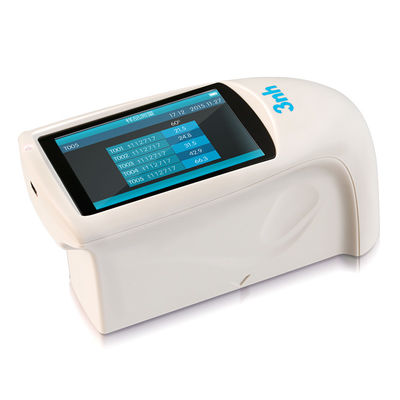

NHG60M micro aperture gloss meter adopts small aperture 2*4mm, with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Advantages

Product Parameters

Model	NHG60M
Measure Angle	60° Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm)	2*4
Measurement Range	0~1000GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard	Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.5s

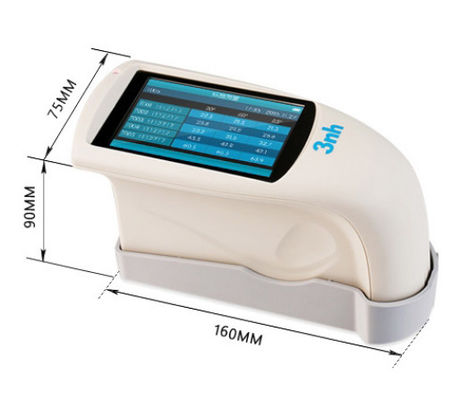

Dimension	LWH : 160mm75mm90mm
Weight	350g
Language	Chinese/English
Battery	3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)

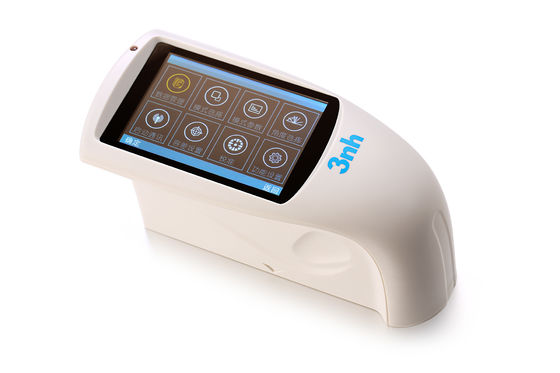

Viewing Screen	TFT 3.5 inch, capacitive touch screen
Interface	USB/RS-232
Data Save	Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40ºC(32~104°F)
Storage Temperature	-20~50ºC(-4~122°F)
Humidity	<85% relative humidity, no condensation

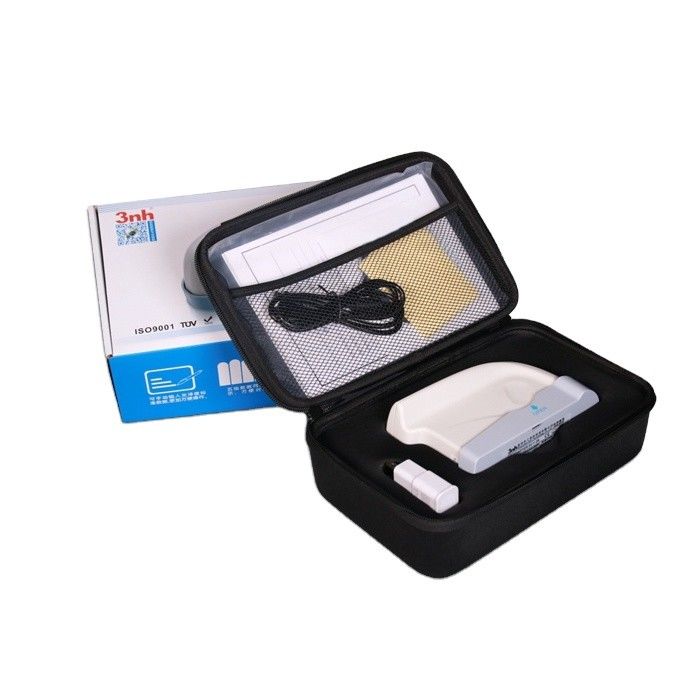

Standard Accessories	Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories	Miniature Printer
Note	The specifications are subject to change without notice.

Detailed Images

Company Information

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 26 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
