Name: 3nh YG60L 60 Degrees Non-Contact Intelligent Gloss Meter with 1 Year Warranty
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Single angle gloss meter

3nh YG60L 60 Degrees Non-Contact Intelligent Gloss Meter with 1 Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	5w	Voltage:	220V, 110V
Type:	Testing Machine	Application:	Auto Testing, Universal Testing
Measuring Angle:	60°	Measuring Spot(mm):	60°:9X15
Measurement Range:	60°:0~1000GU	Division Value:	0.1GU
Non-contact Distance:	10.0mm±0.1

Product Description

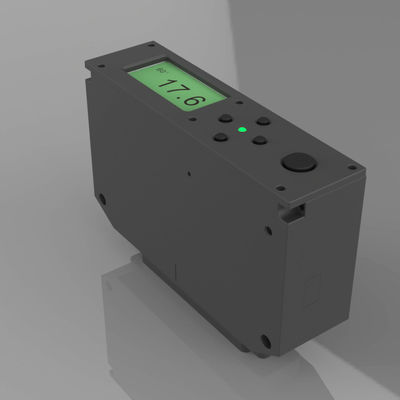

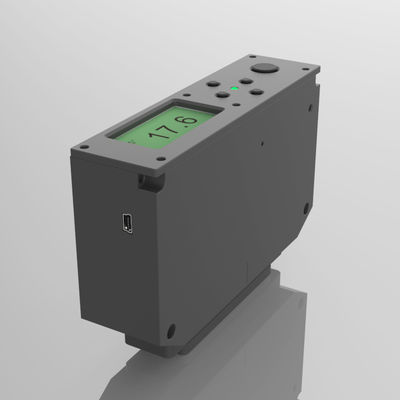

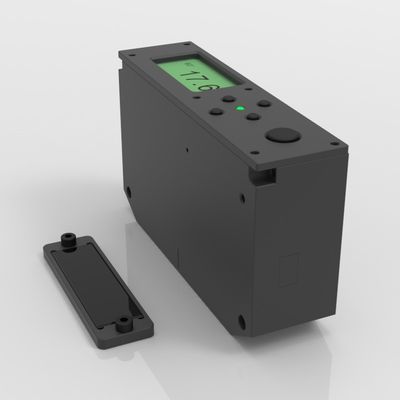

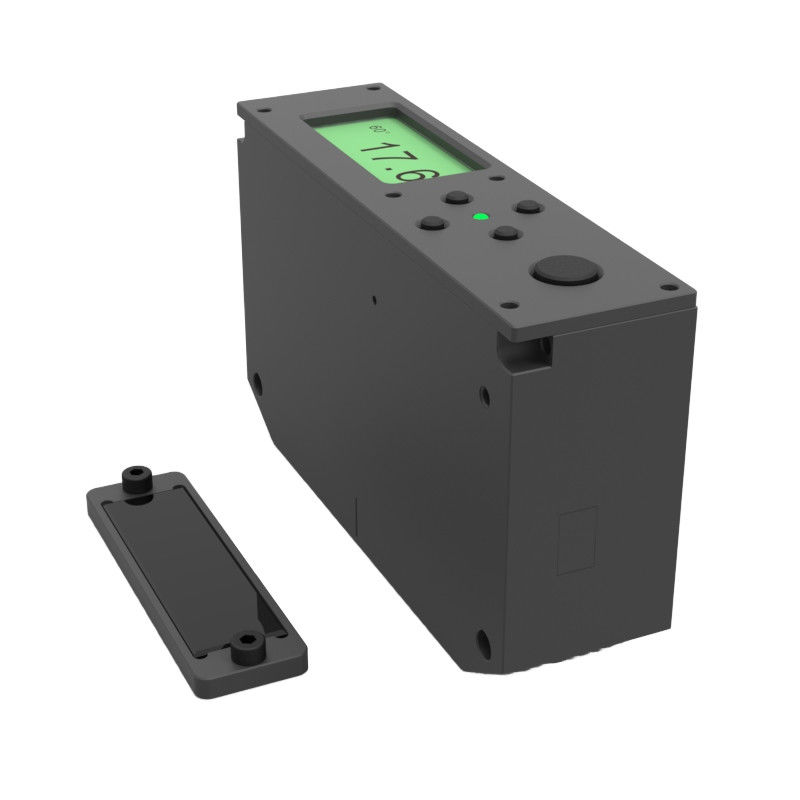

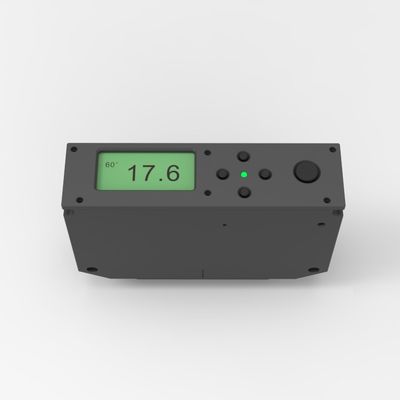

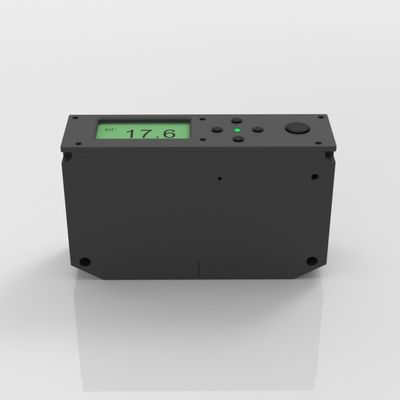

3nh YG60L non contact intelligent gloss meter 60 degrees

Non-contact gloss meter YG60L is an online gloss tester innovatively developed by ThreeNH.

The test probe is non-contact with the sample to be tested, and it realizes non-contact testing of samples such as liquids, sauces, powders, and fragile objects. The succinct probe design allows this product to be placed anywhere in the automated production line, and can be used for online gloss measurement and quality inspection in industries such as paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, and marble . Its unique innovative design can not only provide non-contact measurement solutions directly for the production line, but also ensure stable and high-precision measurement results.

Technical parameters

Product Model	YG60L Online Non-Contact Gloss Meter
Measuring Angle	60°, Conform to Standards: ISO 2813, ASTM D 523, GB/T 9754
Measuring Spot(mm)	60°:9X15
Measurement Range	60°:0~1000GU
Division Value	0.1GU
Non-contact Distance	Non-contact distance 10.0mm±0.1, the parallelism between the measured surface of the sample and the measuring aperture surface is 0.2 degrees
Features	It can be used for gloss measurement and quality inspection in paint ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries. The non-contact test between the test probe and the tested sample realizes the non-contact test of samples such as liquids, pastes, powders, and fragile objects. The measurement time can be as fast as 0.2 seconds, and it can communicate with other systems through Bluetooth or USB, and demonstrate routines of various communication interfaces. Software functions can be customized (according to the evaluation of the situation, additional customization fees will be generated).
Measuring Modes	Basic Mode, Statistical Mode, Continuous Mode, Quality Mode
Measuring Time	0.2s/1s
Repeatability	0~100GU: ±0.5GU ; 100~1000GU: ±0.5%GU Test at intervals of 5 seconds under 10mm verification tooling (ensure test distance 10 and parallelism)
Accuracy	Meet the requirements of JJG 696 working gloss meter
Auto shutdown time	30s,60s,90s,2m or Never Shut Down
Long-time Calibration	With automatic calibration standard function and manual calibration
Language	Simplified Chinese, English, Traditional Chinese
Storage	35000pcs(15,000 records in basic mode and continuous mode, 10,000 records in quality control mode, and 10,000 records in statistical mode)
Display	2.3 inch black and white display
Dimension	140X83X38mm
Weight	About 500g
Power Supply	Use the USB interface power adapter
Data Port	USB,Bluetooth 5.0
PC Software	Quality inspection report printing, more function expansion
Operation Temperature Range	0~40℃(32~104°F)
Storage Temperature Range	-20~50℃(-4~122°F)
Humidity	Less than 85%RH,no condensation
Standard Accessories	Power adapter, quality management software (official website download or after-sales), calibration standard plate, calibration bracket
Optional Accessories	Micro Printer
