Name: 3NH YD5010 Densitometer Customizable CMYK Color Difference Spectrophotometer for Printing OEM Supported
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Spectrodensitometer

3NH YD5010 Densitometer Customizable CMYK Color Difference Spectrophotometer for Printing OEM Supported

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3NH

Contact Now

Detailed Product Description

Product Name:	Density Meter	Application:	Printing Package Film
Power Supply:	220v	Model:	YD5010/YD5050
Material:	Plastic, PLASTIC	Measurement Condition:	ISO 13655
Light Source:	LED	Accuracy:	Density: Within 0.01 D
MOQ:	1 PCS	Density Standards:	ISO Status A, E, I, T
Customized Support:	OEM	Warranty:	1 YEAR
Color:	COLORFUL	Power:	Electronic

Products Description

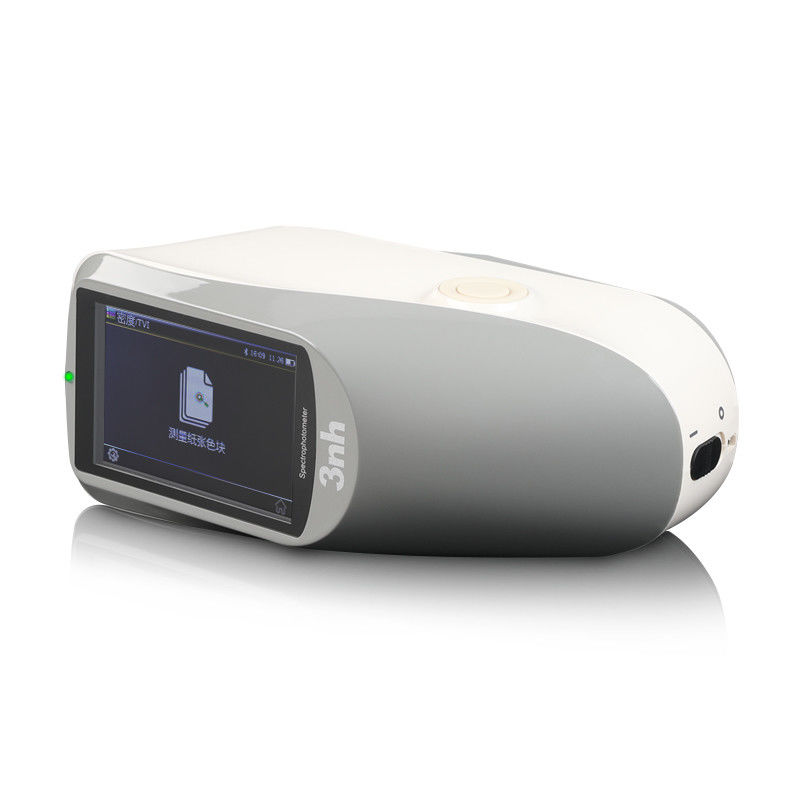

3NH CMYK color difference spectrophotometer for printing YD5010 densitometer

3nh launched new model Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and

Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.

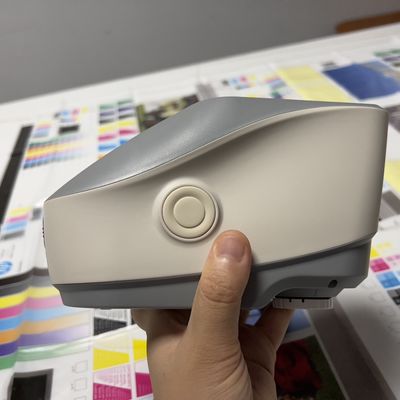

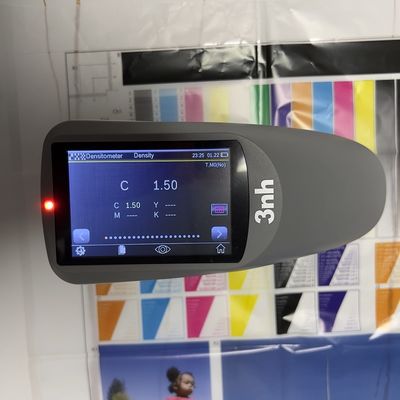

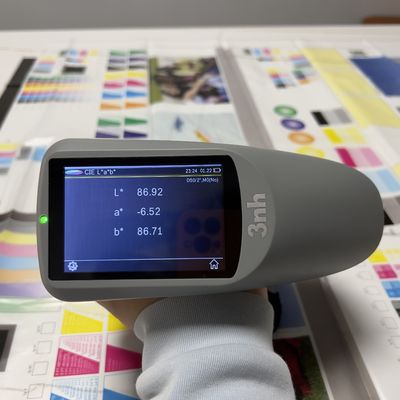

3NH YD5010 cmyk color measurements device spectrodensitometer for printing paper

Product Features
1. 45/0 geometrical optics structure, comply with CIE, the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters.
2. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;
3. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；
4. Perfect combination of the beautiful appearance and the ergonomic structure design;
5. Switchable apertures: Φ2/4/8/20mm, adapt to more samples;
6. Large-capacity storage space, over 20,000 test data
7. Combined LED light sources with long life and low power consumption, including UV light;
8. USB/Blue2.1 dual communication mode is widely useful;
9. Especially suitable for process control and quality control of printing plants;
10. PC software has powerful function expansion.

Product Paramenters

Grating Spectrodensitometer
Model	YD5010 45/0 Spectrodensitometer
Measurement Geometry	45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15
Features	Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm、Φ4mm、Φ8mm.
Light Source	Combined LED Light, UV Light
Spectral separation device	Concave Grating
Detector	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400~700nm
Wavelength Pitch	10nm
Half Bandwidth	10nm
Measurement Conditions	Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A) M1 (CIE Light Soure D50) M2 (Excluding UV light source) M3 (M2+Polarized light filter)
Density Standards	ISO Status A, E, I, T

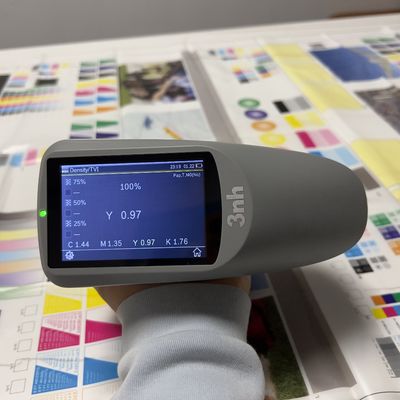

Density index	Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement aperture	Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Color Spaces	CIE LAB,XYZ,Yxy,LCh
Color Difference Formula	ΔEab,ΔE94,ΔE*00
Other Colorimetric Index	/
Observer Angle	2°/10°
Illuminants	A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time	About 1.5s
Repeatability	Density: Within 0.01 D
Repeatability		Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument Error	Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode	Single Measurement, Average Measurement(2-99)
Size(LWH)	18477105mm
Weight	About 600g
Power source	Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB,
Data memory	10000 pcs
Language	Simplified Chinese, English, Traditional Chinese
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory	Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory	Micro Printer
Notes: The specifications are subject to change without notice.
