Name: 3nh YD5010 Plus Electronic Color Spectrophotometer CMYK Desitometer with Printing Package Replaces Basic Spectrodensitometer
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Spectrodensitometer

3nh YD5010 Plus Electronic Color Spectrophotometer CMYK Desitometer with Printing Package Replaces Basic Spectrodensitometer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	5w	Voltage:	220V
Type:	Testing Machine	Application:	Paper Testing, Printing Package Film
Product Name:	Density Meter	Power Supply:	220v
Model:	YD5010 PLUS	Material:	Plastic
Measurement Condition:	ISO 13655	Light Source:	LED
Accuracy:	Density: Within 0.01 D	MOQ:	1 PCS
Density Standards:	ISO Status A, E, I, T

Products Description

3nh YD5010 plus printing package cmyk desitometer color spectrophotometer to replace exact basic spectrodensitometer

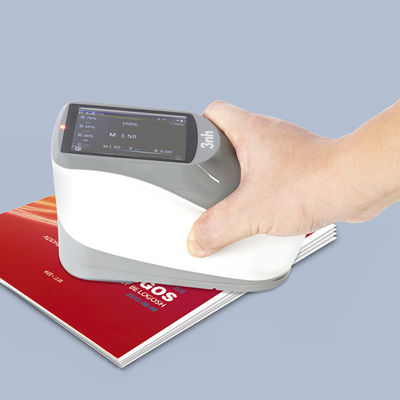

3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and
Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture
Φ2mm,Φ4mm,Φ8mm.

Product Features
1. 45/0 geometrical optics structure, comply with CIE, the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters.
2. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;
3. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；
4. Perfect combination of the beautiful appearance and the ergonomic structure design;
5. Switchable apertures: Φ2/4/8/20mm, adapt to more samples;
6. Large-capacity storage space, over 20,000 test data
7. Combined LED light sources with long life and low power consumption, including UV light;
8. USB/Blue2.1 dual communication mode is widely useful;
9. Especially suitable for process control and quality control of printing plants;

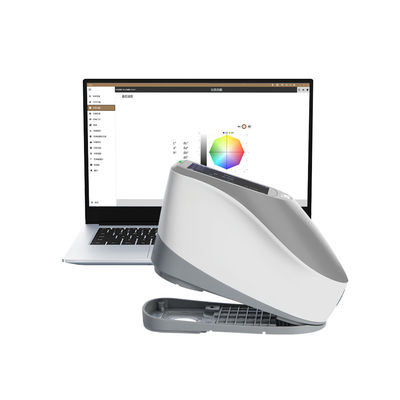

10. PC software has powerful function expansion.

Product Paramenters

Grating Spectrodensitometer
Model	YD5010 plus 45/0 Spectrodensitometer
Measurement Geometry	45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15
Features	Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm、Φ4mm、Φ8mm.
Light Source	Combined LED Light, UV Light
Spectral separation device	Concave Grating
Detector	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400~700nm
Wavelength Pitch	10nm
Half Bandwidth	10nm
Measurement Conditions	Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A) M1 (CIE Light Soure D50) M2 (Excluding UV light source) M3 (M2+Polarized light filter)
Density Standards	ISO Status A, E, I, T
Density index	Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement aperture	Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Color Spaces	CIE LAB,XYZ,Yxy,LCh
Color Difference Formula	ΔEab,ΔE94,ΔE*00
Other Colorimetric Index	/
Observer Angle	2°/10°
Illuminants	A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time	About 1.5s
Repeatability	Density: Within 0.01 D
Repeatability		Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument Error	Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode	Single Measurement, Average Measurement(2-99)
Size(LWH)	18477105mm
Weight	About 600g
Power source	Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements

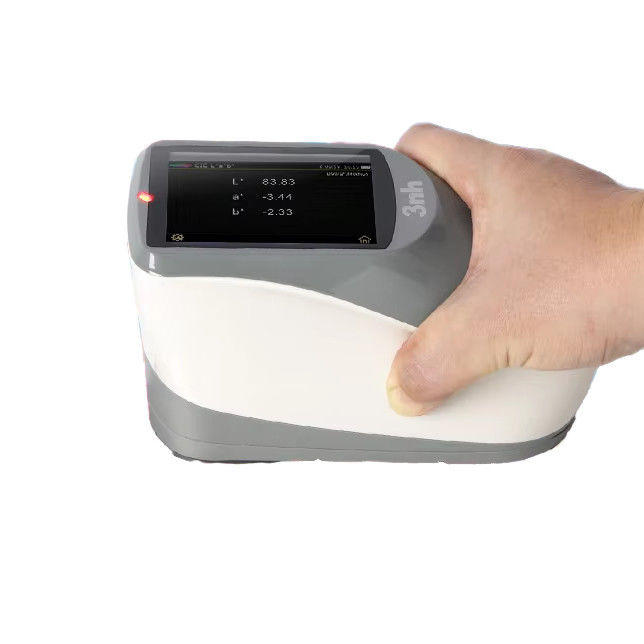

Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB,
Data memory	10000 pcs
Language	Simplified Chinese, English, Traditional Chinese
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

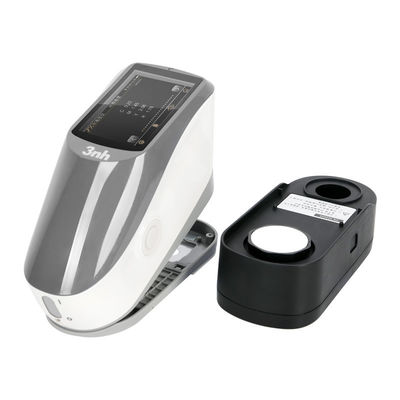

Standard Accessory	Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory	Micro Printer
Notes: The specifications are subject to change without notice.
Data port	USB, Bluetooth® 5.0
Data storage	500 standard samples, 1,0000 samples , APP mass storage
Language	Simplified Chinese, English, Traditional Chinese
Operating temperature range	0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range	-20~50℃, 0~85%RH (no condensation)
Standard Accessories	Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)
Optional Accessories	USB micro printer, powder test box, Bluetooth micro printer,holder base
Notes.	Technical parameters are for reference only, subject to the actual sales of products

Recommend Products

Product packaging

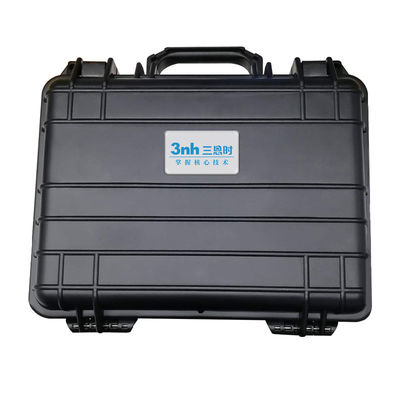

Package:	Carton package
Payment:	T/T, Western Union, Paypal , Credit Card
Lead Time:	1-3 workdays
Shipping	DHL, Fedex, UPS, EMS,TNT, etc

Company Profile

Guangdong Threenh Technology Co.,Ltd. and Shenzhen TILO Technology Co., Ltd. was found in 1998, and we have 3 factories, about 15000 square meters, seperately in Guangzhou and Huizhou of Guangdong Province, and the third one in Jiangxi Province and many offices in China like Shanghai, Shenzhen, Hangzhou, Qinigdao, Beijing, ETC. We specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 30 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications. We also can support OEM&ODM service for free for all over the world customers.

Company

Office

Factory

Honor

Certificates and Meeting Room

Warehouse

Exhibition

Customer Photos

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
