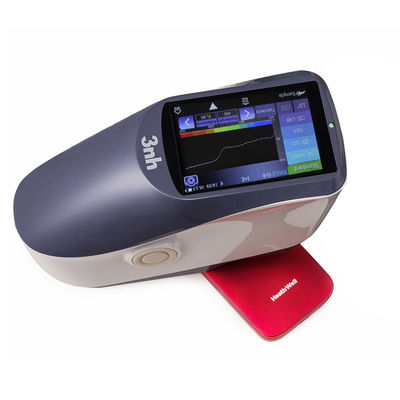

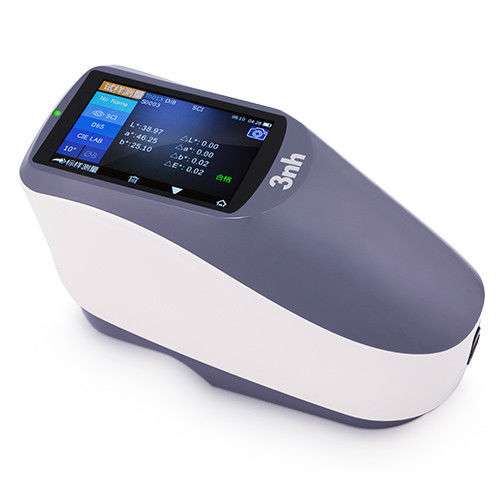

Name: 3nh YS3060 Portable Handheld Spectrophotometer for Product Color Quality Control Alternative to X-Rite Ci6x Konica Minolta CM
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Portable spectrophotometer

3nh YS3060 Portable Handheld Spectrophotometer for Product Color Quality Control Alternative to X-Rite Ci6x Konica Minolta CM

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	Li-ion Battery, 5000 Measurements Within 8 Hours	Voltage:	Other
Type:	Testing Machine	Application:	Plastic Testing, Textile Testing, Paper Testing, Leather Testing, Wood Testing, Laboratory Testing, Lab Testing
Protection Class:	Ip55	Industry Test Instrument:	Color Measurement Equipment

Color Space

CIE LAB L(Lightness): 0 is black,100 is white a(Red-Green): positive values are red; negative values are green and 0 is neutral b(Blue-Yellow): positive values are yellow,negative values are blue abd 0 is neutral CIE LCH L: Lightness,value is the same in each scale C: Chroma H:Hue Angle dE Total Color difference Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Delta E	Meaning
0~1	A normally invisible difference
1~2	very small difference, only obvious to a trained eye
2~3.5	Medium difference, also obvious to an untrained eye
3.5~5	An obvious difference
>6	A very obvious difference

Products Description

YS3010 Grating Spectrophotometer
YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality control management.

YS3060 UV Grating Spectrophotometer
Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.

YS3020 Grating Spectrophotometer
Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.

YS3010 Grating Spectrophotometer
4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.

Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 color spectrophotometer features 4mm and 8mm double apertures. Both SCI and SCE mode makes it widely use in many applications. It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

Model Items	YS3060
Optical Geometry	Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size	48mm
Light Source	Combined LED Light, UV Light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400-700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0-200%
Measuring Aperture	Dual Aperture: 10mm/8mm & 5mm/4mm
Specular Component	SCI&SCE
Color Space	CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB,S-RGB
Color Difference Formula	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM E313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	1.5s
Repeatability	Spectral reflectance: MAV/SCI, standard deviation within 0.08%(400~ 700nm: within 0.18%) Chromaticity value: MAV/SCI, within△E*ab 0.03(After calibration, measure the average value of the white board 30 times each 5S.)
Inter-instrument Error	MAV/SCI, within△E*ab 0.15(Average value for 12 BCRA series II color tiles)
Measurement Mode	single measurement, average measurement(2-99 times)
Locating Method	Camera View Finder Locating
Battery	Li-ion battery. 5000 measurements within 8 hours
Dimension	LWH=18477105mm
Weight	600g
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB/RS-232, Bluetooth® 4.0 dual mode (compatible with 2.1)
Data Storage	Standard 2000 Pcs, Sample 20000 Pcs
Language	English, Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)

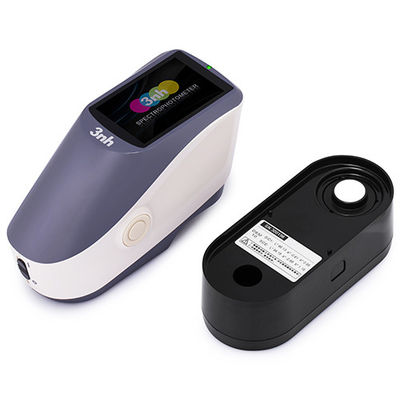

Standard Accessory	Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory	Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.

Application

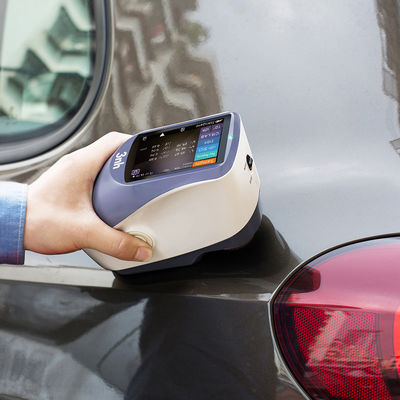

8mm or 4mm aperture is optional, CR8 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

Product packaging

Company Profile

Shenzhen 3nh/Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in color management field and color management field. After years of intensive research, 3nh has launched NH series colorimeter, NR series colorimeter, NS series spectrophotometer, ISO12233 resolution test chart, optical image test solution and specific standard illuminant. Our products are widely used in plastic, electronic, paint, ink, textile, garment, printing anddyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported all around the world. We can provide customization service which has been well received by customers.

3nh adheres to the business philosophy of "people-oriented, customer first, technological innovation, sustainable development" to meet customers' demands continuously, to create value for customers and to achieve a win-win situation and common development.

Certifications

Guangdong Threenh Technology Co.,Ltd.passed CE, ISO 9001, ROHS, FCC, TUV certifications.

Exhibition

We join all over the world exhibitions, including China plas, China coating, Printing and Packaging, and CIOE etc.

FAQ

Frequently Asked Questions

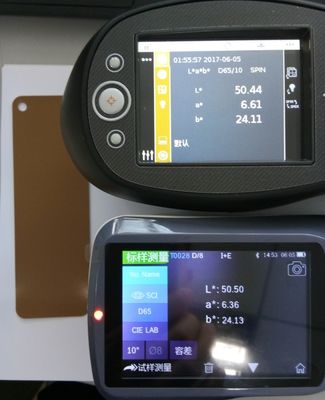

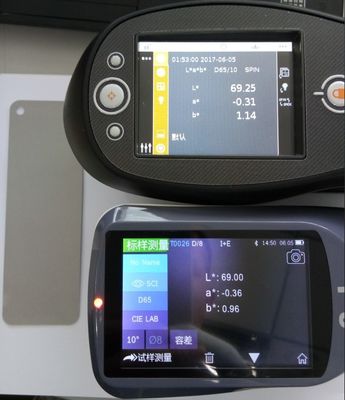

1. Which brands are 3nh models to equal?
Answer: 3nh color test instruments compared with KONICA MINOLTA and X-rite and BYK.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. We offer OEM&ODM service for free.
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
