Name: Portable TS7036 Spectrophotometer for Quality Control and Color Matching in Various Industries 1-Year Warranty
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Portable spectrophotometer

Portable TS7036 Spectrophotometer for Quality Control and Color Matching in Various Industries 1-Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Industry Test Instrument:	Color Measurement Equipment	Warranty:	1 Year
Customized Support:	OEM, ODM	Type:	Testing Machine
Application:	Plastic Testing, Textile Testing, Paper Testing, Leather Testing, Wood Testing, Laboratory Testing, Lab Testing	Protection Class:	Ip55
Power:	Li-ion Battery, 6000 Measurements Within 8 Hours	Voltage:	Other

Color Space

CIE LAB L(Lightness): 0 is black,100 is white a(Red-Green): positive values are red; negative values are green and 0 is neutral b(Blue-Yellow): positive values are yellow,negative values are blue abd 0 is neutral CIE LCH L: Lightness,value is the same in each scale C: Chroma H:Hue Angle dE Total Color difference Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Delta E	Meaning
0~1	A normally invisible difference
1~2	very small difference, only obvious to a trained eye
2~3.5	Medium difference, also obvious to an untrained eye
3.5~5	An obvious difference
>6	A very obvious difference

Products Description

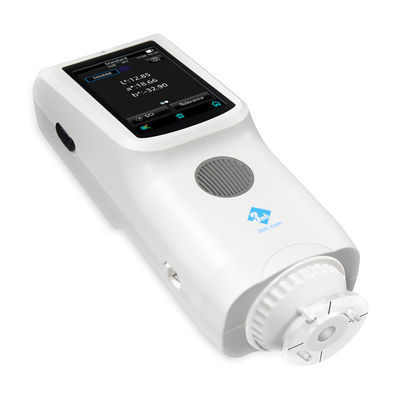

High-End TS7036
TS7036 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level
colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the
accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 32) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.05. The measurement speed and convenience of the operation makes it easy to use. TS7036 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 4/8 mm double apertures, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

Features
1. Φ 4/8 mm double measuring aperture, 10 ° angle observer can meet most of the industry customer requirements;
2. Combination of full-spectrum LED light source, flat grating and true color capacitive touch screen, with a high starting point;
3. Silicon photodiode array (32 groups with double rows) sensor, display precision 0.01, good repeatability;
4. The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life;
5. Quick data search, analysis and comparison with 1000 standard data storage samples and 30000 samples.

Model	TS7036
Optical Geometry	D/8(diffused illumination, 8-degree viewing angle)
		SCI/SCE Mode
		Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic	double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size	Φ40mm
Light Source	Combined full spectrum LED light source, UV light source
Spectrophotometric Mode	Flat Grating
Senso	Silicon photodiode array (double row 32 groups)
Wavelength Range	400～700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	L:0~120; reflectivity:0~200%
Measuring Aperture	Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component	SCI/SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99
Other Colorimetric Index	WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
		YI(ASTM D1925,ASTM E313),
		Metamerism Index MI,
		Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy	0.01
Measuring Time	About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability	Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2-99times)
Locating Method	Camera Locating,stabilizer cross position
Dimension	LWH=81X71X214mm
Weight	About 460g
Battery	Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB,Bluetooth 5.0
Data Storage	Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE)
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional Accessory	USB Micro Printer, Powder Test Box,Bluetooth Micro Printer

Application

With 8mm and 4mm dual apertures, TS7036 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

Product packaging

Company Profile

Shenzhen 3nh/Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in color management field and color management field. After years of intensive research, 3nh has launched NH series colorimeter, NR series colorimeter, NS series spectrophotometer, ISO12233 resolution test chart, optical image test solution and specific standard illuminant. Our products are widely used in plastic, electronic, paint, ink, textile, garment, printing anddyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported all around the world. We can provide customization service which has been well received by customers.

3nh adheres to the business philosophy of "people-oriented, customer first, technological innovation, sustainable development" to meet customers' demands continuously, to create value for customers and to achieve a win-win situation and common development.

Certifications

Guangdong Threenh Technology Co.,Ltd.passed CE, ISO 9001, ROHS, FCC, TUV certifications.

Exhibition

We join all over the world exhibitions, including China plas, China coating, Printing and Packaging, and CIOE etc.

FAQ

Frequently Asked Questions
1. Which brands are 3nh models to equal?
Answer: 3nh color test instruments compared with KONICA MINOLTA and X-rite and BYK.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. We offer OEM&ODM service for free.
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
