Name: 3nh Hg268 Metal Brightness Test Equipment Three-Angle Glossmeter for 20/60/85 Measurements
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Tri gloss meter

3nh Hg268 Metal Brightness Test Equipment Three-Angle Glossmeter for 20/60/85 Measurements

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	44	Voltage:	100-240v
Type:	Testing Machine	Application:	Lab Testing, Laboratory Testing, Paper Testing, Plastic Testing, Wood Testing
Measure Angle:	20/60;/85	Measurement Range:	20;:0~2000gu 60:0~1000gu 85:0~160gu
Division Value:	0.1gu	Displayed Accuracy:	0.01
Measuring Time:	0.1s

Product Description

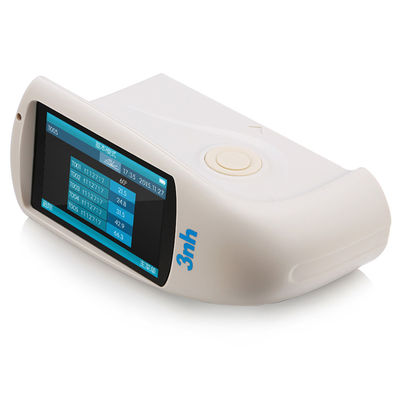

HG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

HG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Advantages

Product Parameters

HG268 Tri-angle Gloss Meter
HG268 Tri-angle Gloss Meter
Measuring Angle	20°/60°/85° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm)	20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range	20°:0~1000GU 60°:0~1000GU 85°:0~160GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard	Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.1s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Language	Chinese/English
Battery	3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display	TFT 3.5 inch
Interface	USB/RS-232
Storage	Basic mode: 1000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40ºC(32~104°F)
Storage Temperature	-20~50ºC(-4~122°F)
Humidity	<85% relative humidity, no condensation

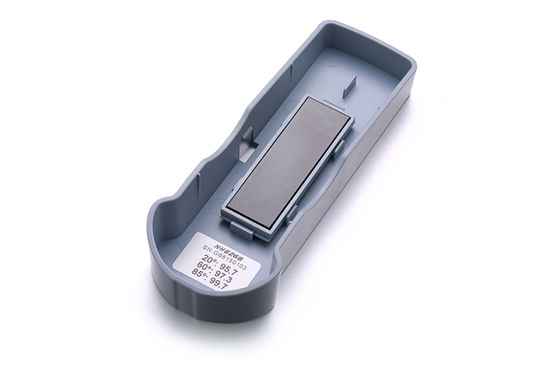

Standard Accessories	Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories	Miniature Printer
Note	The specifications are subject to change without notice.
