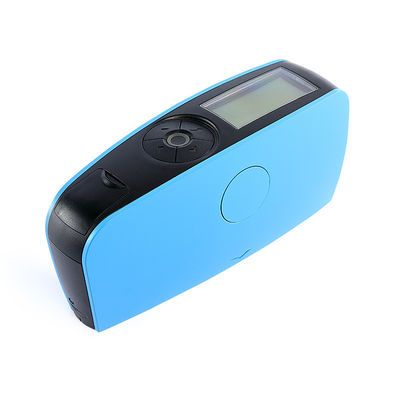

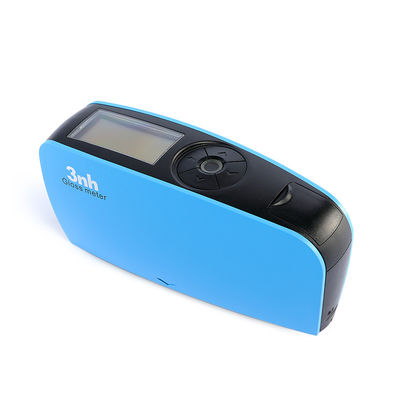

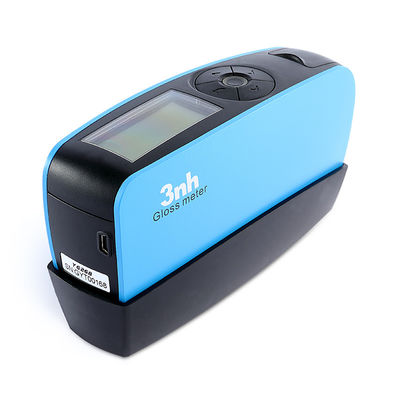

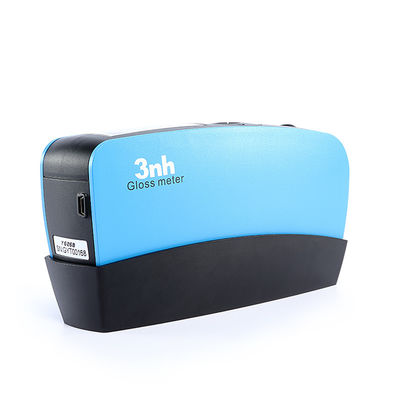

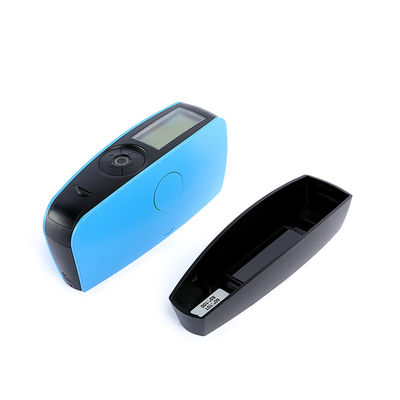

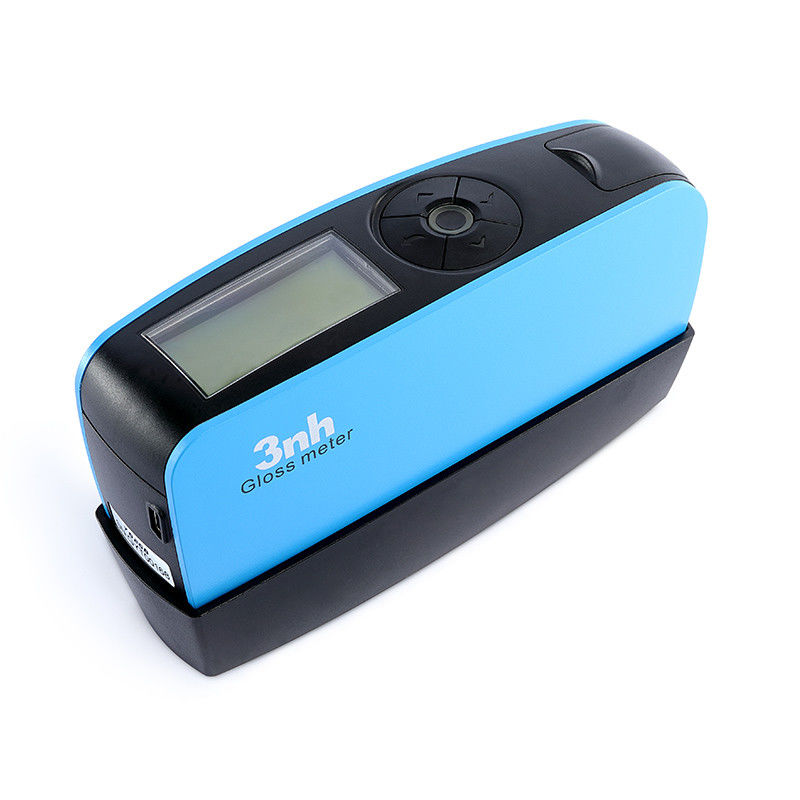

Name: 3nh YG268 Tri-Angle Gloss Meter 20/60/85Degree for Test for Brightness on Marble Paint Ceramic Plastic Metal Product Surfaces
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Tri gloss meter

3nh YG268 Tri-Angle Gloss Meter 20/60/85Degree for Test for Brightness on Marble Paint Ceramic Plastic Metal Product Surfaces

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	0.03W	Accuracy:	0.01
Voltage:	1.5V	Type:	Testing Machine
Protection Class:	/	Measuring Angle:	20° 60°85°
Measurement Range:	20°: 0-2000GU 60°: 0-1000GU 85°: 0-160GU	Division Value:	0.1GU
Measuring Time:	0.5S	Display:	2.3 Inch White And Black Screen
Accurate:	Conform With JJG696 Requirements Of Gloss Meter

Product Description

YG268 Tri-angle Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet requirements of JJG696.

YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.

Technical parameters

Model	YG268 Tri-angle Gloss Meter
Measuring Angle	20° 60°85°
Measurement Range	20°: 0-2000GU 60°: 0-1000GU 85°: 0-160GU
Division Value	0.1GU
Measuring Modes	Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time	0.5S
Repeatability	0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate	Conform with JJG696 requirements of gloss meter
Auto Power-off Time	Within 30s-120s
Long-time Calibration	Automatically check and made the calibration
Language	Chinese & English
Storage	35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display	2.3 inch white and black screen
Size	1605284mm
Weight	About 300g
Power Supply	1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface	USB
PC Software	GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range	0-40℃(32-104° F)
Storage Temperature Range	-20-50℃(-4-122° F)
Humidity Range	< 85% RH, without condensation
Standard Accessories	USB cable, user manual, calibration plate, QC software
Optional Accessories	Miniature printer,Bluetooth
Notification: the technical parameter is only for reference

Advantages

1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.

Industry application

Detailed Images

Company Information

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 26 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
