Name: 3nh HG268 Display Furniture Wood Surface Gloss Meter Testing Equipment with 5 Sets of Measurement Data & Free PC Software
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Tri gloss meter

3nh HG268 Display Furniture Wood Surface Gloss Meter Testing Equipment with 5 Sets of Measurement Data & Free PC Software

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	/	Accuracy:	0.01
Voltage:	100-240v	Type:	Testing Machine
Application:	Universal Testing	Protection Class:	Ip55
Measuring Angle:	20°/60°/85°	Measuring Spot(mm):	20°: 10x10 60°: 9x15 85°: 5x36
Measurement Range:	20°:0~1000GU 60°:0~1000GU 85°:0~160GU	Division Value:	0.1GU
Measuring Time:	0.1S

Product Description

HG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

HG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Technical parameters

HG268 Tri-angle Gloss Meter
HG268 Tri-angle Gloss Meter
Model:	HG268
Measuring Angle	20°/60°/85°
Measuring Angle	Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm)	20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range	20°:0~1000GU 60°:0~1000GU 85°:0~160GU
Division Value	0.1GU
Measurement Range	0-10GU 10-100GU 100-1000GU
Repeatability	± 0.1GU ± 0.2GU ± 0.2%GU
Reproducibility	± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard	Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.1s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Language	Chinese/English
Battery	3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display	TFT 3.5 inch
Interface	USB/RS-232
Storage	Basic mode: 1000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40℃(32~104°F)
Storage Temperature	-20~50℃(-4~122°F)
Humidity	<85% relative humidity, no condensation

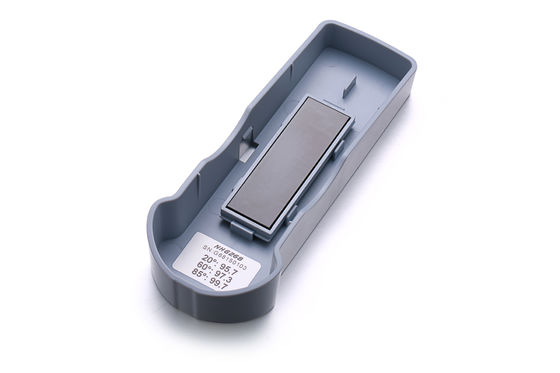

Standard Accessories	Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories	Miniature Printer

Company Information

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 26 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
