| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Material: | Plastic | Color: | White |
| Power: | None | Product Name: | ColorReader |
| Function: | ITA Anayze | Geometry: | 45/0 |
| Integrating Sphere Size: | 20mm | Wavelength Range: | 400~700nm |
| Measuring Aperture: | 8mm | SCI/SCE: | SCE |
| Color Spaces: | CIE LAB,LCh | Display Accuracy: | 0.01 |
| Light Source: | D65 |
Product Model | CR4505 (Advanced) | CR4501(Basic version) | |
Geometry | 45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833 | ||

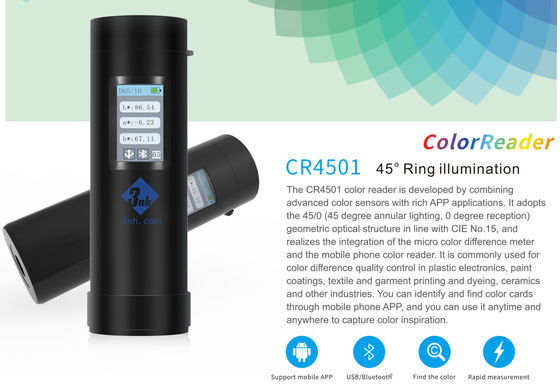

Features | CR4505:Advanced version CR4501: Basic Version; spectrophotometer with universal Φ8 measuring aperture. Color Reader is used for color difference quality control in plastic electronics, paint and coating, textile and garment printing and dyeing,ceramics and other industries; Easily put it in your pocket, carry it with you | ||
Lighting source | Full spectrum LED light source | ||
Spectroscopic methods | Light filter splitting | ||
Sensors | CMOS dual optical path sensor | ||
Measurement wavelength range | 400~700nm | ||
Wavelength interval | 10nm | ||
Measure the diameter | Φ8mm | ||
Color space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 | CIE LAB,LCh | |
The color difference formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) | ΔE*ab | |
Other chromaticity indexes | Spectral reflectance, WI(ASTM E313，CIE/ISO,AATCC,Hunter)， | / | |
YI(ASTM D1925，ASTM 313), | |||
Metamerism Index Mt, Color fastness, color strength, and Opacity, 555 color classification, Munsell(C/2) (implemented by mobile APP) | |||
Angle of observer | 2/10° | 10° | |
Illumination | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65(Mobile APP implementation) | D65 | |
Display | Sample chromaticity value, color difference value, pass/fail result, color simulation, color deviation, reflectance (partly through mobile APP) | / | |
Measuring time | about 1S | ||
Inter-instrument Error | ΔE*00<0.4 (BCRA II series 12 color bricks measured average) | ΔE*00<0.5(BCRA II series 12 color bricks measured average) | |
Stability of measurement | Chromaticity value: ΔE*ab 0.05(After preheating and correction, the average value of the whiteboard is measured for 30 times at an interval of 5s) | Chromaticity value: ΔE*ab 0.1(After preheating and correction, the average value of the whiteboard is measured for 30 times at an interval of 5s) | |

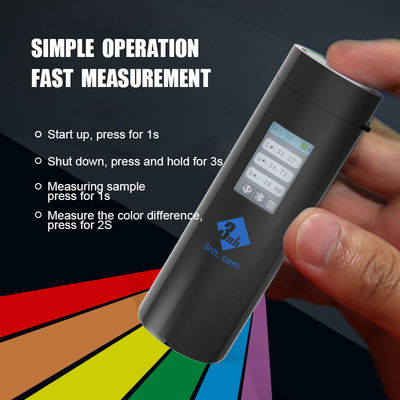

Multi-function smart button | The built-in "smart button" of the instrument can independently complete the measurement function setting or test data review. | / | |
Measurement requirements | Pass National Metrology | / | |
Display precision | 0.01 | ||
Size | Ø30X100mm | ||
Weight | About 88g | ||
Battery | Lithium battery, can do tests continuously for 12000 times in a single full charge | ||
Light source lifespan | 5-years more than 3 million times measurements | ||
Display | 1.14inch-IPS Color LCD | ||
Interface | Type-C USB; Bluetooth 5.0; Buttons | Type C USB, bluetooth | |
Store the data | Standards: 10pcs, Samples: 100pcs. Mass storage can be expanded through mobile APP | The device has no storage function and can be stored through the mobile APP | |

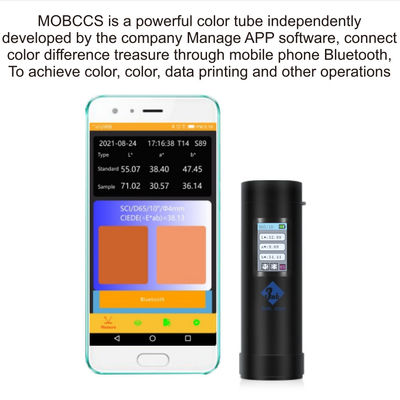

Software support | Andriod,IOS,Windows,Wechat small program,Hong meng, color cloud. | ||
Language | Chinese,English | ||
Operating temperature range | 0~40℃，0~85%RH（No condensation），Altitude：lower than 2000m | ||
Temperature range | -20~50℃，0~85%RH（No condensation） | ||

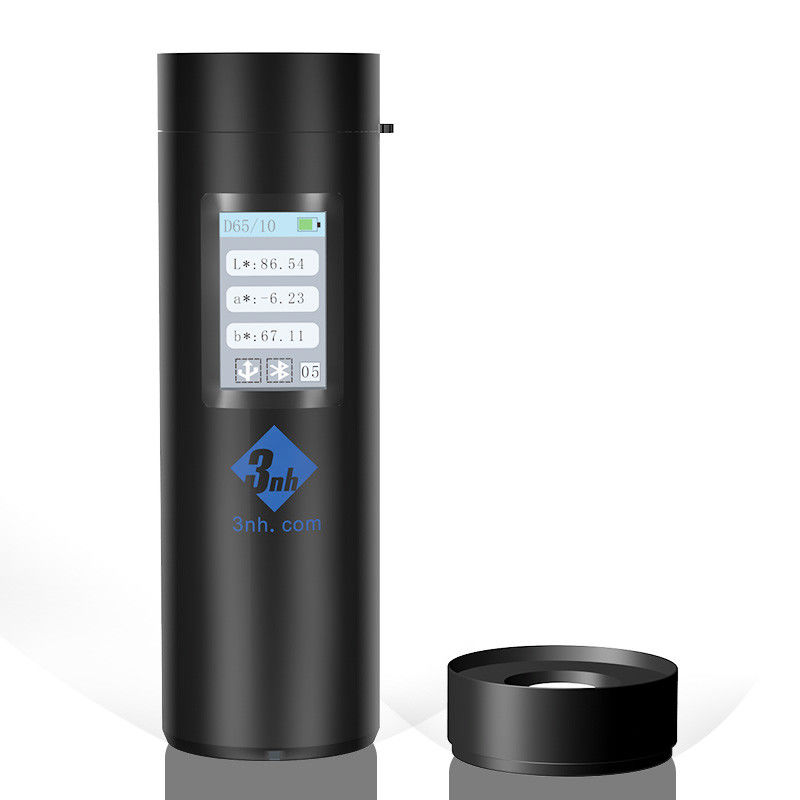

Standard accessories | Data line,manual,calibration box SQCX quality management software,Color matching cloud Wechat applet,MOBCCS APP(download from the official website) | ||
Optional Accessories | Mini printer | ||
Note： | Technical parameters are for reference only, subject to actual instruments. | ||
