OEM CR6 Handheld Color Reader Meter with 1-Year Warranty Free Branding for Distributors (Minimum Order 3pcs)

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	Li-ion Battery 3.7V 3200mAh	Accuracy:	0.01
Voltage:	Other	Type:	Testing Machine
Application:	Plastic Testing, Textile Testing, Paper Testing, Leather Testing, Wood Testing, Laboratory Testing, Lab Testing	Protection Class:	Ip55
Industry Test Instrument:	Color Measurement Equipment

Color Space

CIE LAB L(Lightness): 0 is black,100 is white a(Red-Green): positive values are red; negative values are green and 0 is neutral b(Blue-Yellow): positive values are yellow,negative values are blue abd 0 is neutral CIE LCH L: Lightness,value is the same in each scale C: Chroma H:Hue Angle dE Total Color difference Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Delta E	Meaning
0~1	A normally invisible difference
1~2	very small difference, only obvious to a trained eye
2~3.5	Medium difference, also obvious to an untrained eye
3.5~5	An obvious difference
>6	A very obvious difference

Products Description

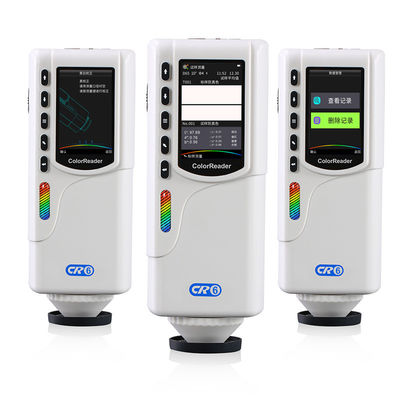

CR6 Portable Colorimeter
ColorReader CR6 (Industrial Enhanced Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence.

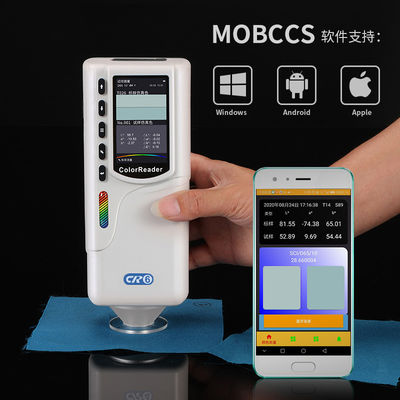

Color Reader CR6 (Industrial Enhanced Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.

Application

Single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries.

Model	CR6
OpticalGeometry	8/D (8°illumination diffuse acceptance) SCI Comply with standard CIE No.15 GB/T 3978
Application	Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing ceramics and other industries. Find the color card through the mobile APP
IntegratingSphereSize	40mm
Light Source Device	Full spectrum LED light source
SpectroscopicMethod	8 channel filter optical splitting
Sensor	CMOS Sensor
SpectralRange	400~700 nm
Measurement Aperture	Φ4mm
Light-included Mode	SCI
Color Spaces	CIE LAB XYZ Yxy LCh CIE LUV s-RGB HunterLab βxy DIN Lab99 (Part of them are only implemented in APP)
Color difference formulas	ΔEab ΔEuv ΔE94 ΔEcmc(2:1) ΔEcmc(1:1) ΔE00 DINΔE99 ΔE(Hunter) (Part of them are only implemented in APP)
OtherColorimetricData	WI(ASTM E313，CIE/ISOAATCCHunter) YI(ASTM D1925，ASTM E313) Mt(metamerism Index) Staining Fastness Color Fastness Color Strength Opacity 555 Index Munsell(C/2) Spectro Curve (Part of them are only implemented in APP)
Division Value	0.01
Observer	2°/10°
Illuminant	D65 A C D50 D55 D75 F1 F2(CWF) F3 F4 F5 F6 F7(DLF) F8 F9 F10(TPL5) F11(TL84) F12(TL83/U30)
Displayed Data	Chromaticity Values Color Difference Values Pass/Fail Result Color Simulation Color Offset
Measurement Time	About 1.2s
Repeatability	Chromaticity value: withinΔE*ab 0.05 (After calibration measure the average value of the whiteboard 30 times at 5s intervals)
Accuracy	Pass the national metrology
MeasurementMethod	Single measurement average measurement (2~99 times)
LocateMode	Light Spot Positioning
Size	205X67X80mm
Weight	About 500g
Battery Performance	Rechargeable Li-ion battery 3.7V @ 3200mAh
Life Lamp	More than 1.6 million measurements in 5 years
Screen	TFT true color 2.8inch@（16:9）
Interface	USB (charge only); Bluetooth 5.0 Button
Data storage	1000pcs standard samples 20000pcs samples storage can be extended through mobile APP
Data viewing	APP supports massive search; Device supports all data viewing
Languages	Simplified Chinese English
Operating Environment	Temperature: 0~40°C; Humidity: 0~85% (No Condensation) Altitude: less than 2000m
Storage Environment	-20~50℃ 0~85%RH (no condensation)
Standard Accessories	Power adapter manual MOBCCS APP software (download from official website Android platform) USB cable whiteboard box wrist strap Φ4mm flat aperture
Optional Accessories	USB Micro PrinterPowder test box
