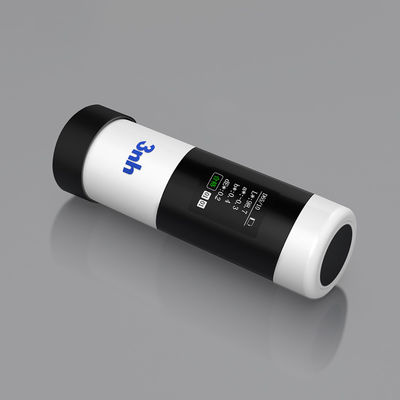

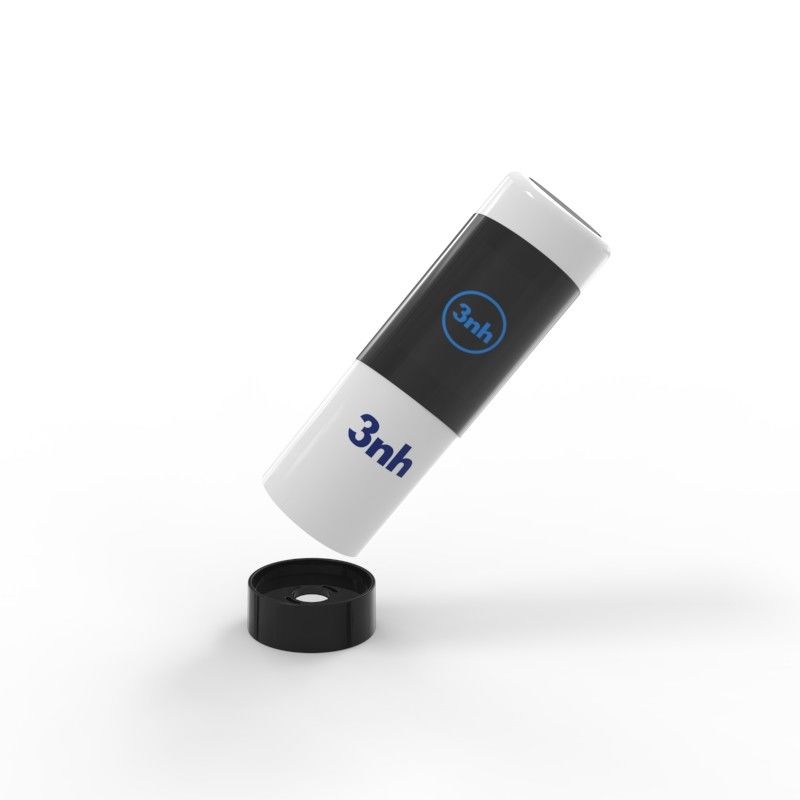

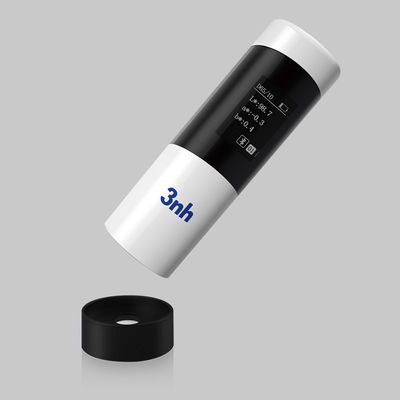

Model | PS100 | PS200 | PS300 |
Geometry | D/8(Diffuse illuminance, 8°reception, SCI), Conforms to standards CIE No.15，GB/T 3978. | | |

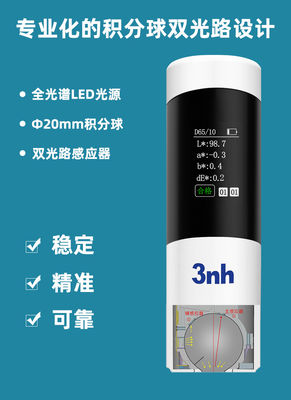

Integrating sphere size | Φ20mm | | |
Illuminant | Full spectrum LED light source | | |
Spectro device | Filter spectro | | |
Sensor | CMOS Dual light path sensor | | |
Wavelength Range | 400～700nm | | |
Measuring Aperture | Φ8mm | | |
SCI/SCE | SCI | | |
Color Spaces | CIE LAB, LCh, | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 | |
color reader meter Formula | ΔE*ab, | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) | |
Other Color Index | / | WI(ASTM E313.CIEISOAACCHunter); YI(ASTM D1925.ASTM 313).Metamerism Index Mt; Staining Fastness; Color Fastness,Color Strength,
Opacity,
555 tone lasification, Munsel(C/2) | |
| | | |
| | | |
Display Accuracy | 0.1 | 0.01 | |
Observer Angle | 10° | 2/10° | |
Light source | D65, | D65,A.C,D50,D55,D75.F1,F2(CWF)F3,F4, F5, F6,F7(DLF),F8,F9, FI0(PL5)F11(TL84),F12(TL83/U3O) | |
Display | Chromaticity value, color dfference value, pass/fail result, color simulation, color offset, Reflectivity (partially achieved
through mobile apps) | | |
Measuring Time | About 1.0s | | |
Repeatability | Chromaticity value: AE*ab 0.1(After preheating and correction, the average value of the whiteboard is measured for 30 times at an
interval of 5s) | Chromaticity value: AE*ab 0.08(After preheating and correction, the average value of the whiteboard is measured for 30 times at an
interval of 5s) | Chromaticity value: AE*ab 0.05(After preheating and correction, the average value of the whiteboard is measured for 30 times at an
interval of 5s) |
Metrology requirements | / | Can pass national metrology certification | |
Measuring Method | Single measurement, average measurement (2~99 times) (Implemented through mobile app) | | |
Locate mode | / | Spot position | |
Dimension | Ø32X100mm | | |
Weight | 88g | | |
Battery | Lithium battery, can do tests continuously for 12000 times in a single full charge | | |
Light source lifespan | 5-years more than 3 million times measurements | | |
Display screen | 1.14 inch IPS color screen | | |
Interface | Type-C USB; Bluetooth 5.0 | | |
Data storage | Can be stored through mobile APP | | |

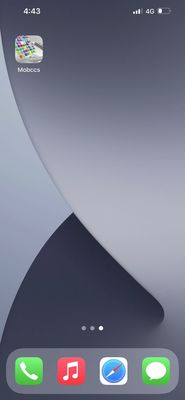

Software support | Android, IOS, Windows, WeChat mini program, Hongmeng, Color Cloud | | |
White calibration | Auto calibration | | |
Language | Chinese,English | | |
Working Temperature range | 0~40℃, 0~85%RH (No condensation); Altitude:lower than 2000m | | |
Storage Temperature Range | -20~50℃, 0~85%RH (No condensation) | | |
Standard Accessories | Data cable, manual, calibration box, SQCX PC software & APP (download from official website) | | |
Optional Accessories | USB mini printer, powder test box | | |
Note： | Technical parameters are for reference only, subject to actual instruments. | | |
