Name: 3nh TS8210 Digital Color Analyzer Electronically Powered Coffee Bean Roast Spectrophotometer 220v 1-Year Warranty
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Benchtop spectrophotometer

3nh TS8210 Digital Color Analyzer Electronically Powered Coffee Bean Roast Spectrophotometer 220v 1-Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Optical Geometry:	D/8	Light Source:	LED Light Source
Measuring Aperture:	Single Aperture 8/4mm	Wavelength Range:	400-700nm
Measured Reflectance Range:	0-200%	Specular Component:	SCI/SCE
Power:	Electronic	Warranty:	1 Year
Customized Support:	OEM, ODM	Voltage:	220V, 110V
Type:	Testing Machine	Application:	Auto Testing, Universal Testing
Protection Class:	Ip55	Power:	5w
Accuracy:	0.01

Product Description

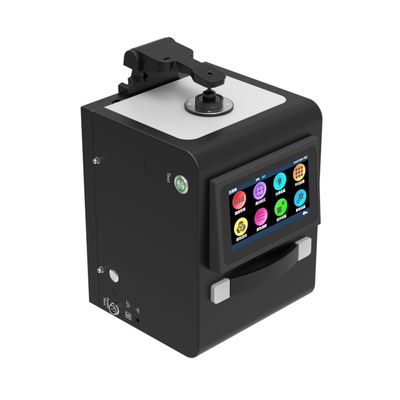

3nh Coffee Bean Roast Digital Color Analyzer Colorimeter Spectrophotometer TS8210

The portable desktop spectrophotometer TS8210 is a spectrophotometer developed by 3NH with independent core spectroscopic technology. It adopts built-in silicon photodiode array (40 groups in double rows) sensors and imported white board, and gives consideration to the speed of measurement and the convenience of operation. The rotating and pressing structure makes the test more convenient. TS8210 portable desktop spectrophotometer color measurement instrument features with repeatability Δ E * ab easily control within 0.025, and inner errors Δ E * ab control within 0.2. This accuracy measurement makes it good used in the lab color accurate analysis and transfer.

Application of TS8210 portable Desktop spectrophotometer:

TS8210 portable desktop spectrophotometer color measurement instrument equipped with cutomzied single aperture Φ4mm or Φ8mm, good for horizontal or vertical measurement, wider adaptability, suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries.

Technical parameters

Model	TS8210
Optical Geometry	D/8(diffused illumination, 8-degree viewing angle)
	SCI (specular component included)/SCE (specular component excluded) ; excluded UV measurement
	Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic	Customized aperture,good for horizontal or vertical measurement, wider adaptability;
	Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries;
Integrating Sphere Size	Φ40mm
Light Source	Combined full spectrum LED light source
Spectrophotometric Mode	Flat Grating
Sensors	Silicon photodiode array (double row 40 groups)
Wavelength Range	400~700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0~200%
Measuring Aperture	Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component	SCI/SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00
Other Colorimetric Index	WI(ASTM E313,CIE/ISO,AATCC,Hunter),
	YI(ASTM D1925,ASTM 313),
	Staining Fastness, Color Fastness, Color Strength, Opacity
	8° Glossiness,555 tone classification
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time	About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability	Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2-99times)
Locating Method	Camera Locating
Dimension	LWH=370X240X260mm
Weight	About 7.8kg
Battery	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB, trigger switch interface
Data Storage	Standard 1000 Pcs, Sample 20000 Pcs
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)
Optional Accessory	Micro Printer, Foot Switch, Rotating Bracket
Notes	Technical parameters are only for reference, subject to the actual sale of the product

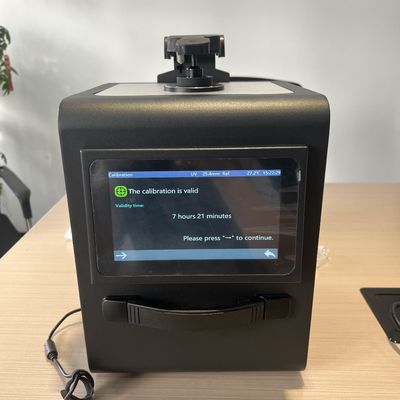

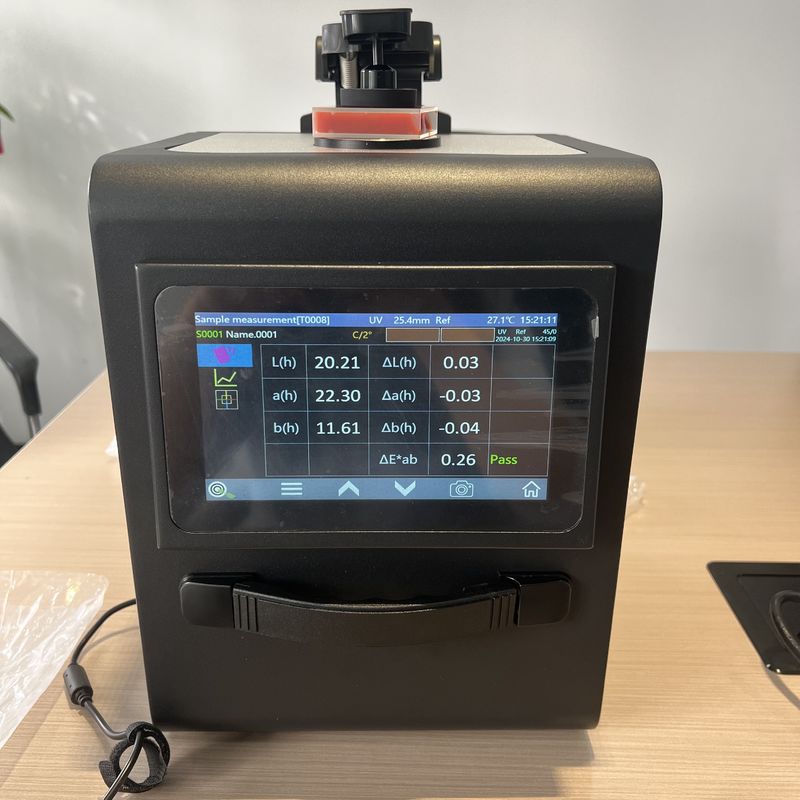

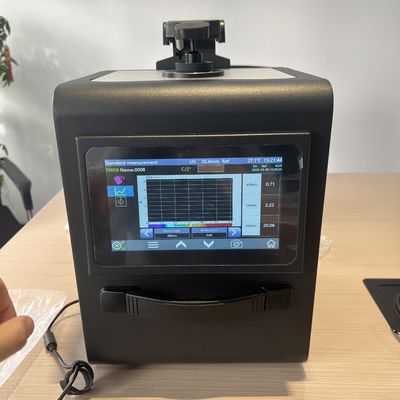

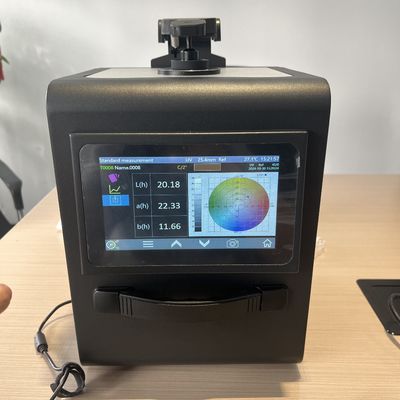

Detailed Images

Company Information

Guangdong Threenh Technology Co.,Ltd. and Shenzhen TILO Technology Co., Ltd. was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.

Our Services

3nh & TILO Company Service

3nh offers one year free warranty except consumables and lifetime maintenance service. This product is under warranty for 12 months from the purchase date. Customers must provide warranty card and valid proof of purchase. Warranty is only for the failures caused by the quality problem.

3nh also offers OEM & ODM service based on MOQ 5 pcs.

* Note: 3nh reserves the final interpretation right to the warranty terms.

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 26 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
