Name: 3nh TS8560 Benchtop Grating Spectrophotometer 220V Textile Matching Color Difference Data Spectrophotometer with 1 Year Warranty
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Benchtop spectrophotometer

3nh TS8560 Benchtop Grating Spectrophotometer 220V Textile Matching Color Difference Data Spectrophotometer with 1 Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Optical Geometry:	Reflect: Di:8°, De:8°;Transmittance: Di:0°, De:0°	Light Source:	LED+Pulsed Xenon
Color Space:	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,DIN Lab99	Wavelength Range:	360-780nm
Measured Reflectance Range:	0-200%	Warranty:	1 Year
Customized Support:	OEM, ODM	Voltage:	220V
Type:	Testing Machine	Application:	Auto Testing, Universal Testing, Plastic Testing, Textile Testing, Paper Testing
Power:	72w

Product Description

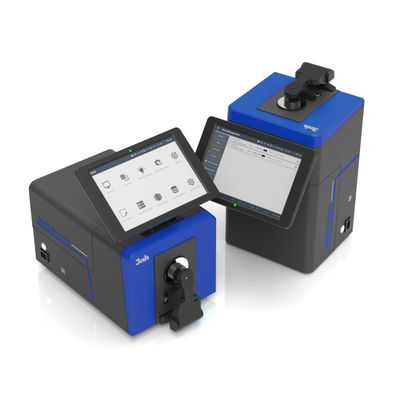

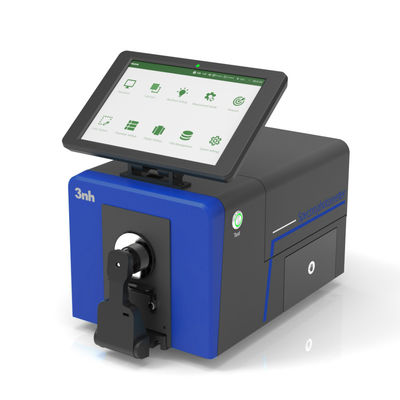

High Sensitivity Wider Spectral Benchtop Grating Spectrophotometer TS8560 is a benchtop grating spectrophotometer which is developed by 3nh independently with core technology. It uses a dual-array CMOS image sensor to have high sensitivity and a wider spectral response range, which makes the test more accurate. With a 10.5-inch independent rotating screen, it is convenient and easy to use. TS8560 also supports Xenon pulse and LED two Light Sources. The repeatability of ΔE*ab is within 0.01, and inter-instrument error is within 0.1, and the measurement performance is super stable and accurate.

Technical parameters

Model	TS8560 (LED+Pulsed Xenon)
Optical Geometry	Reflect: D/8 (diffused illumination, 8-degree viewing angle) ;
	SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source ;
	Transmittance: D/0 (diffuse illumination: 0° viewing) ;
	SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source ;
	HAZE (ASTM D1003);
	Standards meet: CIE No.15, GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7,JIS Z8722 under condition C
Characteristic	1. It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.

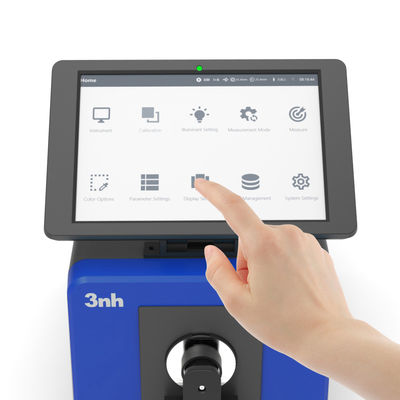

	2. 10.5 inch rotatable display pad,128G storage,camera locating
	3. Instrument can be measured on the side, upward measurement, and the downward measurement (use accessories) and other gestures.

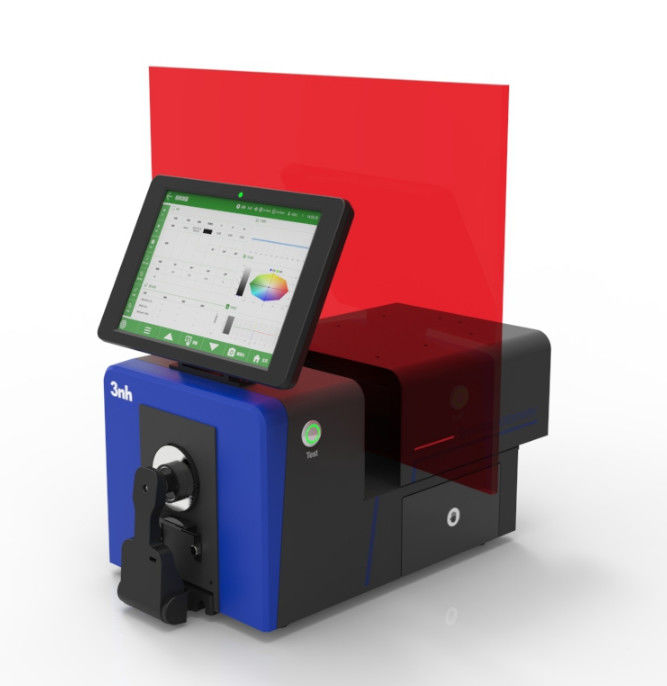

	4. Open transmission warehouse, available thickness of 54mm transmitted samples.

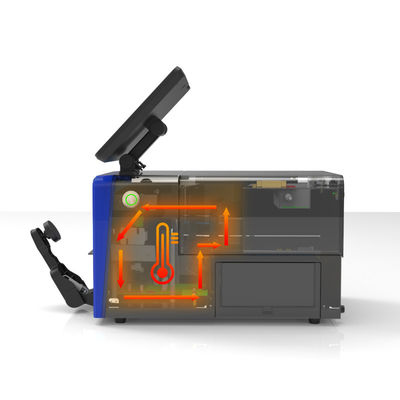

	5. Automatic temperature and humidity compensation function.
	6. Built-in full spectral high life LED light source and Xenon lighting sources, testing fluorescent samples have better recognition.
Integrating Sphere Size	Φ154mm
Light Source Device	360nm–780nm Wavelength range ,combined LED Light. Including UV, 400nm cut-off light source, 420nmCut-off light source,360~780nm Xenon Lamp.
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	360~780nm
Wavelength Interval	10nm
Semiband Width	5nm
Measured Reflectance Range	0~200%
Reflectivity Resolution	0.01

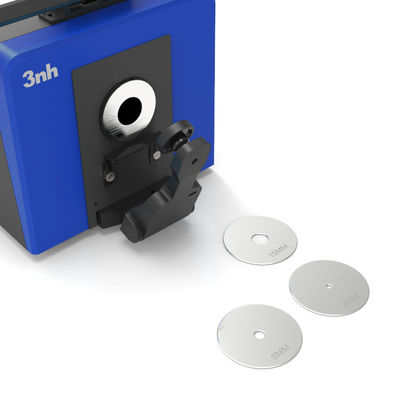

Measuring Aperture	Reflective:
	XLAV Φ25.4mm/Φ30mm LAVΦ15mm/Φ18mm MAVΦ8mm/Φ10mm SAVΦ4mm/Φ6mm
	Transmissive:
	Φ25.4mm(No limit on sample height and width, but thickness≤54mm)
	Remark:
	1. Automatic identification of aperture switch
	2. Customized Configuration caliber and lens position
Specular Component	Reflectance: SCI&SCE / Transmittance: SCI&SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99, ΔE(Hunter), ΔE*CH,555 Index
Other Colorimetric Index	WI(ASTM E313, CIE/ISO,AATCC,Hunter, Taube,Berger Stensby)
	YI(ASTM D1925,ASTM 313),ISO brightness,R457
	MI (Metamerism Index),
	Staining Fastness, Color Fastness, Color Strength, Opacity,
	APHA/Hazen/Pt-Co Index, Gardner Index
	Haze,Transmission(ASTM D1003),Saybolt index, ASTM D1500 Color code, 8° Gloss,555 Index,carbon(My,dM),Color density CMYK(A,T,E,M), Tint, Color density(part function achieved via software in PC)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF
Illuminant	ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, customized light source(41 light sources in total,part achieved via software in PC)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color assessment, haze, liquid chromaticity
Measuring Time	2.0s(Measure SCI & SCE meantime about 4s )
Repeatability	Reflectance chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01( Under LED light source, when a white calibration plate is measured 30 times at 5 second intervals after white calibration);
Repeatability	spectrum reflectance /transmission:≤0.1%
Inter-instrument Error	Φ25.4mm/SCI, Within ΔE*ab 0.1 (Average for 12 BCRA Series II color tiles)
Dimension	LWH=440x248x283mm
Weight	Approx. 13.5kg
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	10.5-inch rotatable display pad
Data Port	USB & Bluetooth
Data Storage	64G storage, above 100000pcs
Language	Simplified Chinese, Traditional Chinese, English,(Optional Customized German,Russian, French ,Spanish ,Japanese, Thai, Korean, Polish, Portuguese)
Operating Environment	0~40℃(32~104°F)
Storage Environment	-20~50℃(-4~122°F)
Standard Accessory	Power Adapter, User Guide, U Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component, cuvette, 10.5-inch screen
Optional Accessory	Micro Aperture(4mm) transmission test clamp component, Instrument inversion components,culture dish,Film fixture
Notes	Test reports can be printed through a network printer connected to a PC or display pad;The specifications are subject to change without notice.

Packaging & Shipping

Company Information

Our Services

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 26 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
