Name: High-Precision TS4010 Benchtop Spectrophotometer Accurate Color Measurement for Coffee and Petroleum Liquids
Brand: Guangdong Threenh Technology Co., Ltd.
SKU: TS4020
Availability: InStock

Home Products Benchtop spectrophotometer

High-Precision TS4010 Benchtop Spectrophotometer Accurate Color Measurement for Coffee and Petroleum Liquids

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh
Model Number:	TS4020

Contact Now

Detailed Product Description

IP Rating:	IP68	Type:	Automated Colorimeter
Operating Temperature:	0℃~40℃	Light Source:	LED
Communication Method:	Bluetooth	Wavelength Resolution:	5nm
Model:	TS4010	Product Name:	Liquid Spectrophotometer
MOQ:	1pcs	Certificate:	CE, ROHS
Color:	White	Package:	Carton Box
Weight:	9.6kg	Size:	370 X 300 X 200 Mm
Repeatability:	0.01	Customized Support:	OEM

Products Description

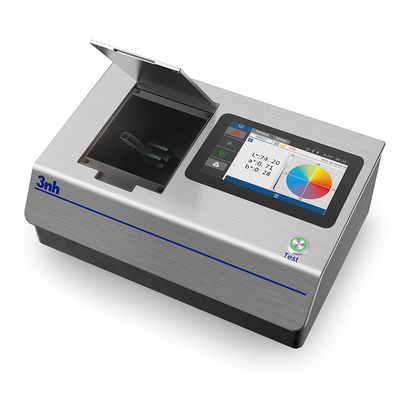

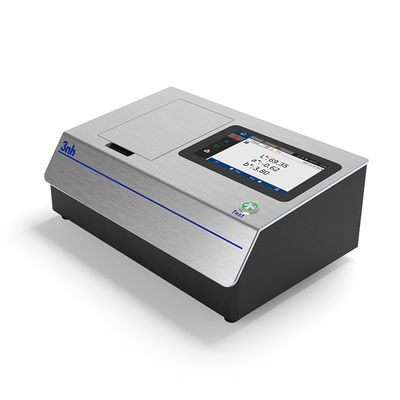

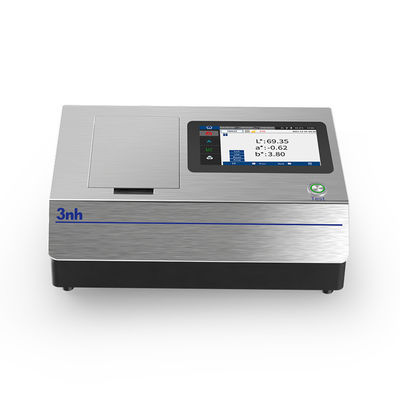

Liquid spectrophotometer TS4010

The TS4010 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity
measurement using innovative core technology by 3nh. Using a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, the liquid spectrophotometer TS4010 can quickly and accurately capture the transmitted color of the sample and deeply analyze its subtle chromaticity properties. Widely used in various fields such as solvents, pharmaceuticals, petroleum, industrial oils, cosmetics, food and beverage.

Product Paramenters

Features:

1. Rich chromaticity indicators In addition to commonly used color indicators, we can also provide color indicators such as transmittance, petroleum color code (ASTM D1500), platinum cobalt index, Gardner index, Saybolt index, pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color), etc., to meet the diverse industry needs.

2. Intelligent zero calibration

Adopting intelligent zero calibration technology, adapting to different measurement environments, maintaining good measurement performance of the instrument, it can ensure the accuracy of measurement data and high consistency of measurement results.

3. Support micro transmission measurement By adopting more precise optical design, the transmission direction of light can be accurately controlled, and the minimum liquid addition can be reduced to 1ml, achieving micro transmission measurement.

4. Multivariate light source simulation

Built in a series of standard light sources recognized by the International Commission on Illumination to ensure accurate color measurement of your product under different light sources.

5. Excellent repeatability and inter errors The repeatability spectral transmittance is within 0.05%, the chromaticity value is within 0.01, and the inter errors is within 0.2, ensuring high consistency of measurement results between multiple devices and providing quality control support for large-scale production.

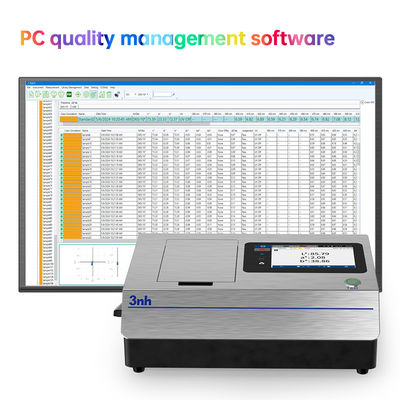

6. PC quality management software

Provide powerful analysis software, suitable for quality management in various industries, generate test reports based on user test results, and facilitate customer customization and management work.

Model	TS4010 Liquid spectrophotometer
Illumination	Transmission: D/0 (diffuse illumination, 0° Viewing); Approximately CIE15 stipulates 0/0 (parallel light illumination/0 degree reception); Comply with standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
Characteristic	The national standard pharmacopoeia color measurement, glass processing, plastic processing, film, display screen processing, packaging industry, liquid medicine analysis and other industries are widely used in color analysis and transmittance testing, supporting trace transmittance measurement.
Integrating sphere size	Φ 40 mm
Light source	Combined full spectrum LED light source
Spectral method	Plat grating spectrometer
Sensor	Silicon photodiode array (dual row 40 groups)
Wavelength range	360 ~780 nm
Wavelength interval	10nm
Half bandwidth	5nm
Transmittance range	0~200%
Measuring aperture	Transmission: Φ 10 mm
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 ,CMYK ( the above parts are realized by the host computer)
Color difference formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter),ΔE*CH
Other color indexes	Transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Staining Fastness,Color fastness,absorbance, APHA / Hazen / Pt-Co (Platinum-Cobalt Index), Gardner Index, Iron-Cobalt Index, Saybolt (Saybolt Index), ASTM D1500 color scale, Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (a total of 41 light sources, the above part is realized by the host computer)
Displayed Data	Spectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring time	Fast mode: about 0.8s
Repeatability	Spectral transmittance: standard deviation within 0.05% ( 400 ~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.01 (after preheating correction, measured at intervals of 5S);
Inter-instrument Error	ΔE*ab within 0.2 (average value of 5 standard transmission color plates measured by the original manufacturer)
Size	Length x width x height = 370 x 300 x 200 mm
Weight	About 9.6kg
Power supply mode	Powered by DC 24V/3A power adapter
Illuminant Life Span	More than 3 million measurements in 5 years

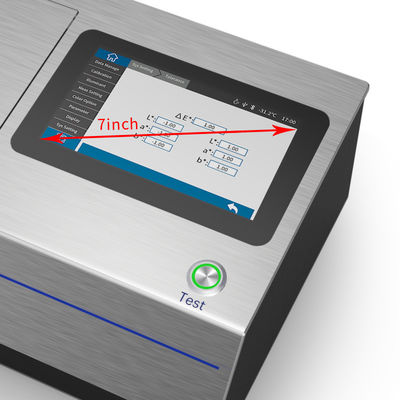

Display	TFT true color 7-inch, capacitive touch screen
Interface	USB, print serial port , Bluetooth
Data Storage	1000 Standards, 10000 test samples
Special Features	Intelligent zero calibration
Language	Simplified Chinese, Traditional Chinese, English
Operating temperature range	0~40°C (32~104°F)
Storage temperature range	-20~50°C (-4~122°F)

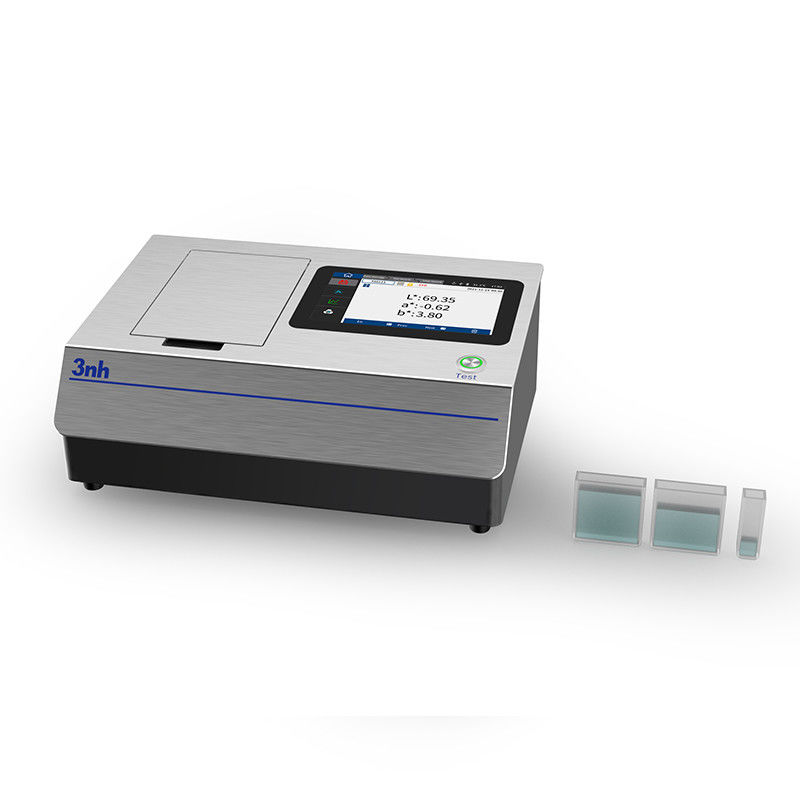

Standard accessories	Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, transmission test fixture assembly, 10mm cuvette, 50mm cuvette, micropore (4mm) transmission test fixture assembly
Optional accessories	Micro printer, 30mm cuvette, 100mm cuvette
Note:	The technical parameters are for reference only, please refer to the actual products sold.
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃，0~85%RH（no condensing）
Standard Accessory	Power adapter, USB cable, Manual, Quality Management Software (official website download), Calibration Box, Protective Cover, Wrist Strap, Measuring Apertures
Optional Accessory	Micro-printer, Powder Test Box.
Note：	Technical parameters are for reference only, subject to actual sales.
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional Accessory	Micro Printer, Powder Test Box
Notes	The specifications are subject to change without notice.

Company Profile

Guangdong Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.

Customer Photos

Product packaging

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
