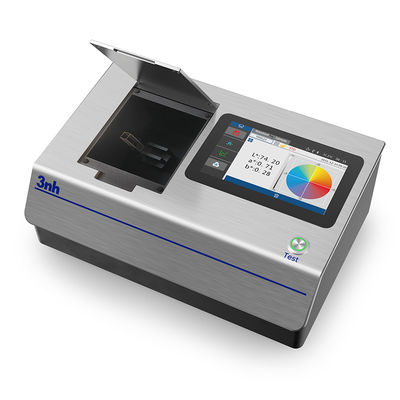

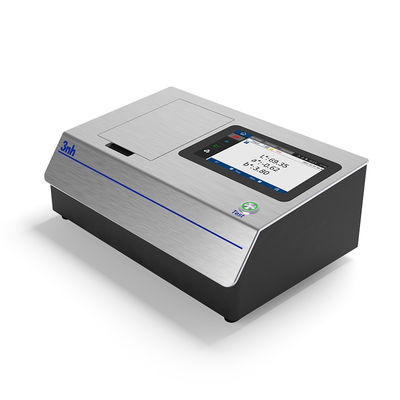

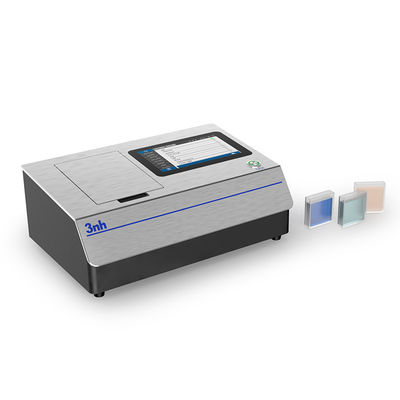

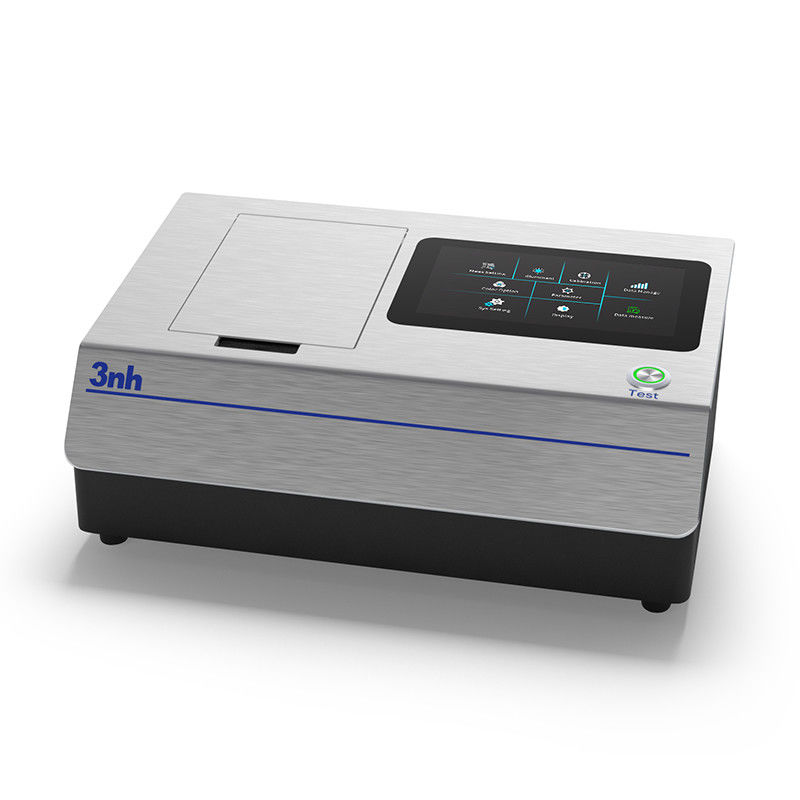

The TS4020 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity measurement using innovative core technology by 3nh. Adopting a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, it provides a variety of chromaticity indicators, including transmittance, chromaticity, color difference, platinum cobalt index, Gardner, Saybolt index, petroleum color code, pharmacopoeia chromaticity, etc. It supports micro transmission measurement and has fast measurement speed. Widely used for chromaticity measurement needs in fields such as chemical industry, food and beverage, petrochemical industry, pharmaceutical industry, etc.
Product Overviews
1. Rich chromaticity indicators
In addition to commonly used color indicators, we can also provide color indicators such as transmittance, petroleum color code (ASTM D1500), platinum cobalt index, Gardner index, Saybolt index, pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color), etc., to meet the diverse industry needs.
2. Intelligent zero calibration
Adopting intelligent zero calibration technology, adapting to different measurement environments, maintaining good measurement performance of the instrument, it can ensure the accuracy of measurement data and high consistency of measurement results.

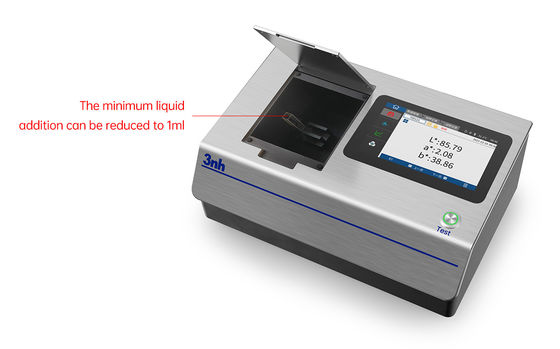

3. Support micro transmission measurement
By adopting more precise optical design, the transmission direction of light can be accurately controlled, and the minimum liquid addition can be reduced to 1ml, achieving micro transmission measurement.
4. Multivariate light source simulation
Built in a series of standard light sources recognized by the International Commission on Illumination to ensure accurate color measurement of your product under different light sources.
5. D/0 Geometric Optical Structure
D/0 geometric optical structure can provide more comprehensive chromatic analysis, ensuring that your product meets quality standards: ASTM D1003/1044, CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ASTM E308, DIN5033 Teil7
6. Combination full spectrum LED light source
The use of a combined full spectrum LED light source as the illumination source covers the wavelength range of 360-780nm, ensuring high stability of the test.
7. High performance dual array sensors
Equipped with high-performance silicon photodiode dual 40 array sensors, it can ensure measurement speed and accuracy, and improve work efficiency.
8. Powerful display and interaction capabilities

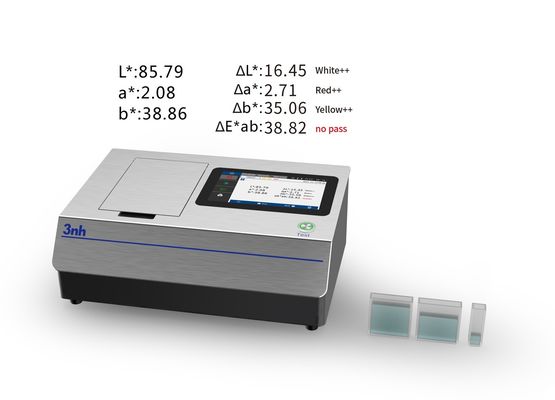

Equipped with a 7-inch true color capacitive touch screen and large screen navigation operation, it can display various chromaticity indicators such as spectra, color difference values/graphs, color simulation, and color offset, and achieve fast and accurate color analysis and judgment.
9.Excellent repeatability and inter errors
The repeatability spectral transmittance is within 0.05%, the chromaticity value is within 0.01, and the inter errors is within 0.2, ensuring high consistency of measurement results between multiple devices and providing quality control support for large-scale production.
10. PC quality management software
Provide powerful analysis software, suitable for quality management in various industries, generate test reports based on user test results, and facilitate customer customization and management work.
The national standard pharmacopoeia color measurement, glass processing, plastic processing, film, display screen processing, packaging industry, liquid medicine analysis and other industries are widely used in color analysis and transmittance testing, supporting trace transmittance measurement.
YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Staining Fastness,Color fastness,absorbance, APHA / Hazen / Pt-Co (Platinum-Cobalt Index), Gardner Index, Iron-Cobalt Index,
Saybolt (Saybolt Index), ASTM D1500 color scale, Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color)
NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (a total of 41 light sources, the above part is realized by the host computer)
Displayed Data
Spectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring time
Fast mode: about 0.8s
Repeatability
Spectral transmittance: standard deviation within 0.05% ( 400 ~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.01 (after preheating correction, measured at intervals of 5S);
Inter-instrument Error
ΔE*ab within 0.2 (average value of 5 standard transmission color plates measured by the original manufacturer)
Size
Length x width x height = 370 x 300 x 200 mm
Weight
About 9.6kg
Power supply mode
Powered by DC 24V/3A power adapter
Illuminant Life Span
More than 3 million measurements in 5 years
Display
TFT true color 7-inch, capacitive touch screen
Interface
USB, print serial port , Bluetooth
Data Storage
1000 Standards, 10000 test samples
Special Features
Intelligent zero calibration
Language
Simplified Chinese, Traditional Chinese, English
Operating temperature range
0~40°C (32~104°F)
Storage temperature range
-20~50°C (-4~122°F)
Standard accessories
Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, transmission test fixture assembly, 10mm cuvette, 50mm cuvette, micropore (4mm) transmission test fixture assembly
Optional accessories
Micro printer, 30mm cuvette, 100mm cuvette
Note:
The technical parameters are for reference only, please refer to the actual products sold.
