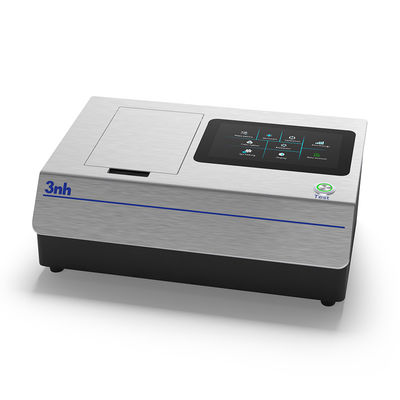

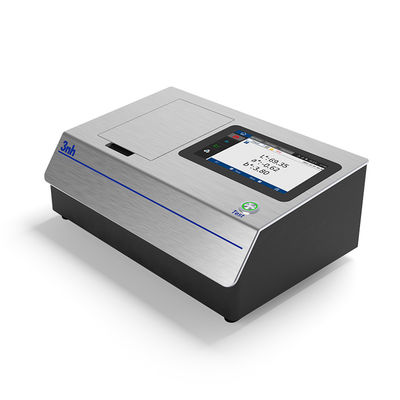

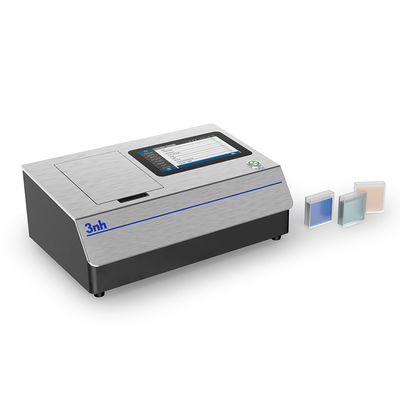

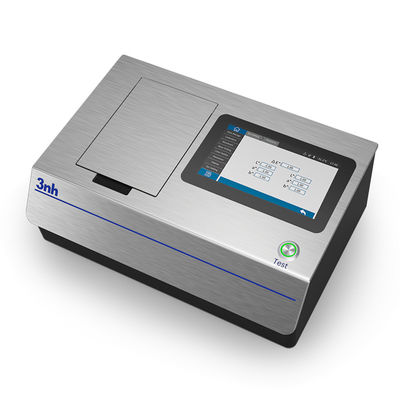

The TS4010 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity measurement using innovative core technology by 3nh. Using a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, the liquid spectrophotometer TS4010 can quickly and accurately capture the transmitted color of the sample and deeply analyze its subtle chromaticity properties. Widely used in various fields such as solvents, pharmaceuticals, petroleum, industrial oils, cosmetics, food and beverage.
Product Overviews
1. Rich chromaticity indicators
In addition to commonly used color indicators, we can also provide color indicators such as transmittance, petroleum color code (ASTM D1500), platinum cobalt index, Gardner index, Saybolt index, pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color), etc., to meet the diverse industry needs.
2. Intelligent zero calibration
Adopting intelligent zero calibration technology, adapting to different measurement environments, maintaining good measurement performance of the instrument, it can ensure the accuracy of measurement data and high consistency of measurement results.
3.Excellent repeatability and inter errors
The repeatability spectral transmittance is within 0.05%, the chromaticity value is within 0.015, and the inter errors is within 0.25, ensuring high consistency of measurement results between multiple devices and providing quality control support for large-scale production.
4. Multivariate light source simulation
Built in a series of standard light sources recognized by the International Commission on Illumination to ensure accurate color measurement of your product under different light sources.
5. D/0 Geometric Optical Structure
D/0 geometric optical structure can provide more comprehensive chromatic analysis, ensuring that your product meets quality standards: ASTM D1003/1044, CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ASTM E308, DIN5033 Teil7
6. Combination full spectrum LED light source
The use of a combined full spectrum LED light source as the illumination source covers the wavelength range of 360-780nm, ensuring high stability of the test.
7. High performance dual array sensors
Equipped with high-performance silicon photodiode dual 40 array sensors, it can ensure measurement speed and accuracy, and improve work efficiency.
8. Powerful display and interaction capabilities

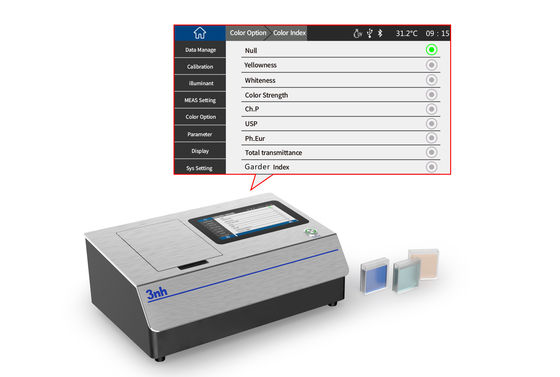

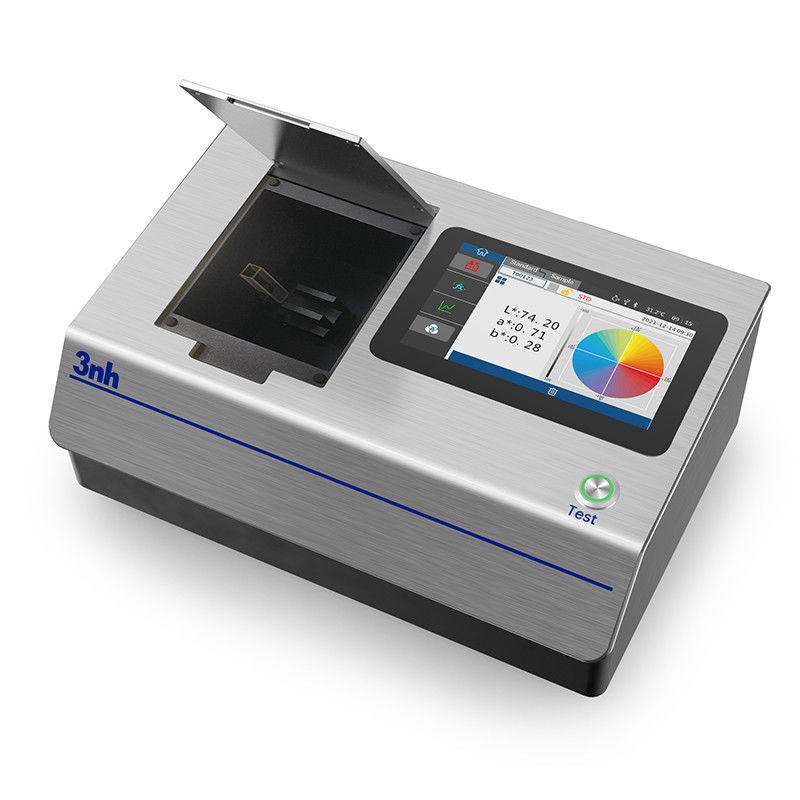

Equipped with a 7-inch true color capacitive touch screen and large screen navigation operation, it can display various chromaticity indicators such as spectra, color difference values/graphs, color simulation, and color offset, and achieve fast and accurate color analysis and judgment.
9. PC quality management software
Provide powerful analysis software, suitable for quality management in various industries, generate test reports based on user test results, and facilitate customer customization and management work.
Color analysis and transmittance testing are widely used in industries such as glass processing, plastic processing, film processing, display screen processing, packaging, and liquid medicine analysis.
Integrating sphere size
Φ 40 mm
Light source
Combined full spectrum LED light source
Spectral method
Plat grating spectrometer
Sensor
Silicon photodiode array (dual row 40 groups)
Wavelength range
360 ~780 nm
Wavelength interval
10nm
Half bandwidth
5nm
Transmittance range
0~200%
Measuring aperture
Transmission: Φ 10 mm
Color Space
CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 ,CMYK ( the above parts
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (a total of 41 light sources, the above part is realized by the host computer)
Displayed Data
Spectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring time
Fast mode: about 0.8s
Repeatability
Spectral transmittance: standard deviation within 0.05% ( 400 ~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.015 (after preheating correction, measured at intervals of 5S);
Inter-instrument Error
ΔE*ab within 0.25 (average value of 5 standard transmission color plates measured by the original manufacturer)
Size
Length x width x height = 370 x 300 x 200 mm
Weight
About 9.6kg
Power supply mode
Powered by DC 24V/3A power adapter
Illuminant Life Span
More than 3 million measurements in 5 years
Display
TFT true color 7-inch, capacitive touch screen
Interface
USB, print serial port
Data Storage
1000 Standards, 10000 test samples
Special Features
Intelligent zero calibration
Language
Simplified Chinese, Traditional Chinese, English
Operating temperature range
0~40°C (32~104°F)
Storage temperature range
-20~50°C (-4~122°F)
Standard accessories
Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, transmission test fixture assembly, 10mm cuvette, 50mm cuvette, 50mm cuvette fixture
The technical parameters are for reference only, please refer to the actual products sold.
