Name: YL4560 Non-Contact Color Spectrophotometer Avoid Cross-Contamination in Liquid & Gel Testing
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Benchtop spectrophotometer

YL4560 Non-Contact Color Spectrophotometer Avoid Cross-Contamination in Liquid & Gel Testing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Sample Type:	Solid And Liquid	Light Source:	Combined LED Light + UV
Non-Contact Distance:	7.5mm	Measuring Aperture:	20mm
Optical Geometry:	45/0	Warranty:	1 Year
Customized Support:	OEM, ODM	Type:	Testing Machine
Power:	/	Accuracy:	0.01
Voltage:	100-240v	Protection Class:	/

Product Description

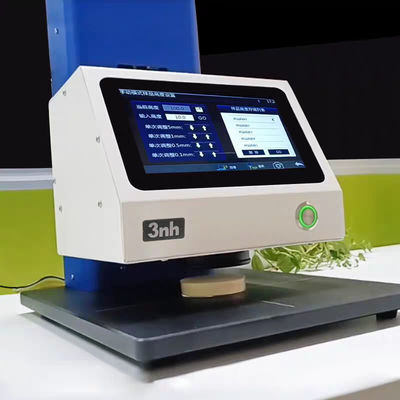

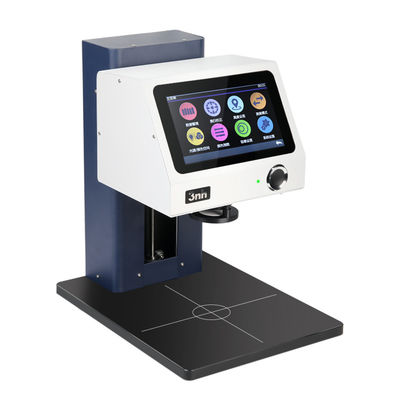

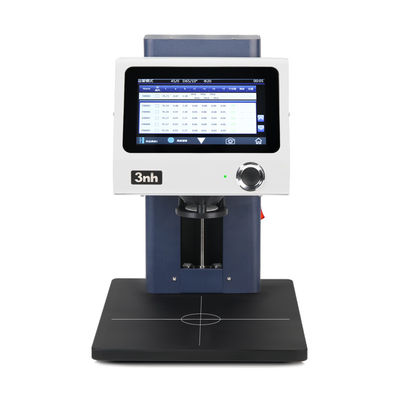

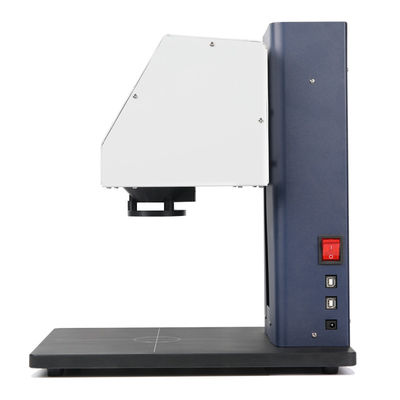

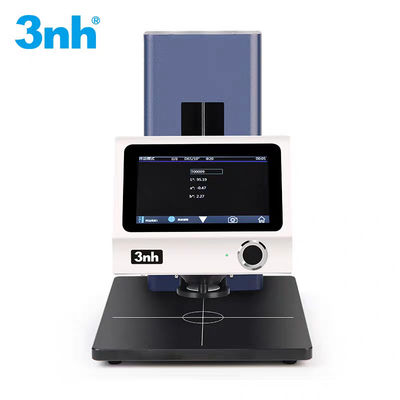

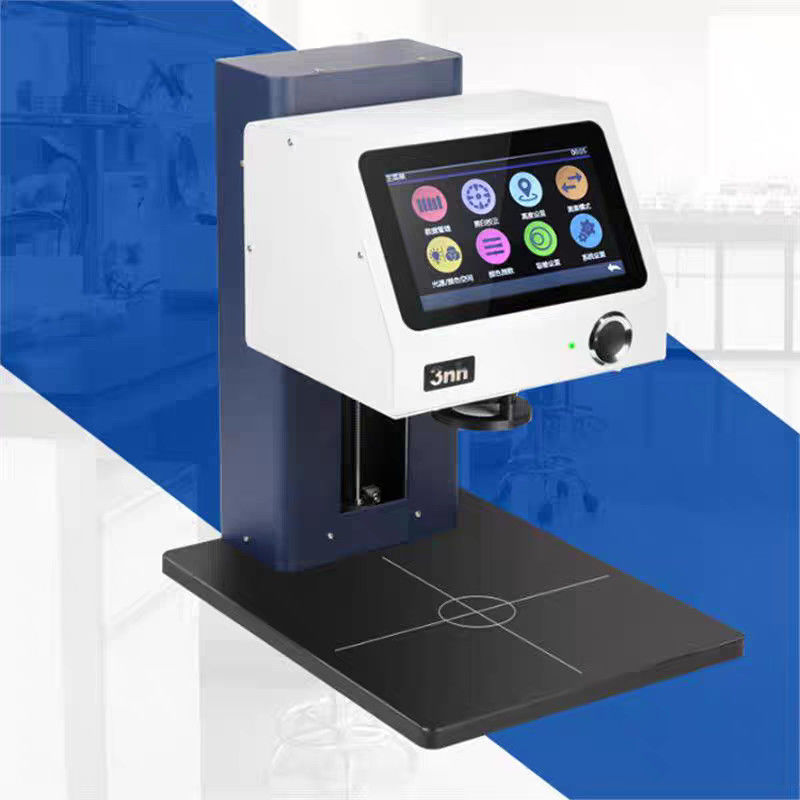

YL4560 spectrophotometer is a color measuring instrument with 45/0 optical geometry(45 ring-shaped illumination, vertical viewing), to achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc, which is developed by 3nh independently with independent intellectual property.

YL4560 non-contact benchtop spectrophotometer can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement. Its unique innovative design can not only provide non-contact measurement scheme directly from the production line, but also ensure stable and high-precision measurement results.

YL4560 non-contact spectrophotometer will not touch the sample in the measurement process, to prevent damage to the sample, but also to avoid cross contamination.

Technical parameters

Model	YL4560
Optical Geometry	45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features	45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement.
Light Source	Full spectrum LED light,UV light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400~700nm/10nm output
Reflectance Range	0~200%
Measuring Aperture	Φ20mm(can be customized <20mm)
Non-contact Distance	7.5mm
Sample Height	0~150mm
Distance Adjustment Method	Manual adjustment and automatic adjustment (test height can be stored)
Measuring mode	Sample mode/QC Mode/Continuous statistics mode
Locating Method	Camera Locating
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00,ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM E313),TI(ASTM E313,CIE/ISO), Metamerism Index MI,Staining Fastness,Color Fastness,Color Strength, Opacity
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5, F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring Time	About 1.5s
Data Storage	Sample mode + QC mode: 40,000; Continuous statistics mode: 10,000
Repeatability	Spectral reflectance: Standard deviation within 0.08% Chromaticity value: Within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	Within ΔE*ab 0.2(Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2 ~ 99 times)
Dimension	330250370mm
Weight	About 10 kg
Power Supply	DC 24V, 3A Power Adapter
Illuminant Life Span	5 years, more than 3 million times measurements
Display Screen	7" TFT Capacitive Screen-touch Display
Data Port	USB/RS-232,Bluetooth®4.0
Language	Simplified Chinese,Traditional Chinese,English
Working Environment	Temperature: 0~40ºC; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage Environment	Temperature: -20~50ºC; Humidity: 0~85% (No Condensation)
Standard Accessory	Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity,
Notes	The specifications are subject to change without notice.

Detailed Images

Industry application

Advantages

Company Information

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 26 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
