High Precision Liquid Colorimeter TS4010 | D/0 Optical Structure for Accurate Liquid Color Measurement

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	Li-ion Battery, 5000 Measurements Within 8 Hours	Accuracy:	0.01
Voltage:	DC 24V/3A Power Adapter	Type:	Testing Machine
Application:	Laboratory Testing, Lab Testing	Protection Class:	Ip55
Industry Test Instrument:	Color Measurement Equipment

Color Space

CIE LAB L(Lightness): 0 is black,100 is white a(Red-Green): positive values are red; negative values are green and 0 is neutral b(Blue-Yellow): positive values are yellow,negative values are blue abd 0 is neutral CIE LCH L: Lightness,value is the same in each scale C: Chroma H:Hue Angle dE Total Color difference Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Delta E	Meaning
0~1	A normally invisible difference
1~2	very small difference, only obvious to a trained eye
2~3.5	Medium difference, also obvious to an untrained eye
3.5~5	An obvious difference
>6	A very obvious difference

Products Description

Liquid colorimeter TS4020

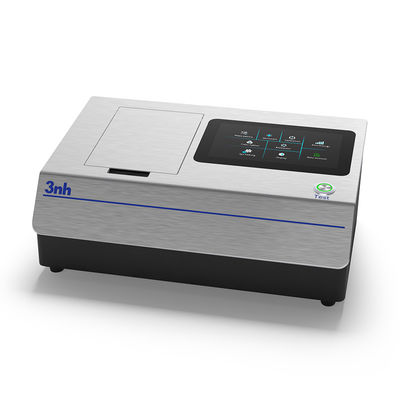

The TS4010 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity measurement using innovative core technology by 3nh. Using a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, the liquid spectrophotometer TS4010 can quickly and accurately capture the transmitted color of the sample and deeply analyze its subtle chromaticity properties. Widely used in various fields such as solvents, pharmaceuticals, petroleum, industrial oils, cosmetics, food and beverage.

Model	TS4010 Liquid spectrophotometer
Illumination	Transmission: D/0 (diffuse illumination, 0° Viewing); Approximately CIE15 stipulates 0/0 (parallel light illumination/0 degree reception); Comply with standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
Characteristic	Color analysis and transmittance testing are widely used in industries such as glass processing, plastic processing, film processing, display screen processing, packaging, and liquid medicine analysis.
Integrating sphere size	Φ 40 mm
Light source	Combined full spectrum LED light source
Spectral method	Plat grating spectrometer
Sensor	Silicon photodiode array (dual row 40 groups)
Wavelength range	360 ~780 nm
Wavelength interval	10nm
Half bandwidth	5nm
Transmittance range	0~200%
Measuring aperture	Transmission: Φ 10 mm
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 ,CMYK ( the above parts are realized by the host computer)
Color difference formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter),ΔE*CH

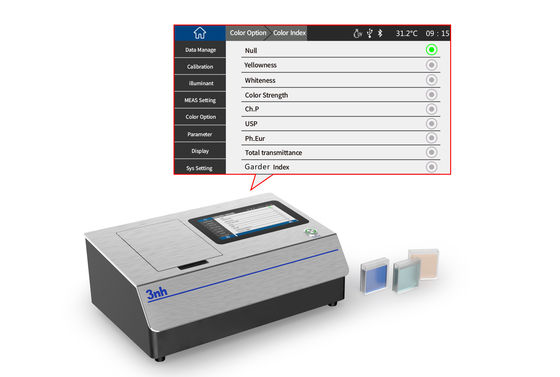

Other color indexes	Transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM E313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Staining Fastness,Color fastness,absorbance, APHA / Hazen / Pt-Co (Platinum-Cobalt Index), Gardner Index, Iron-Cobalt Index, Saybolt (Saybolt Index), ASTM D1500 color scale, Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (a total of 41 light sources, the above part is realized by the host computer)

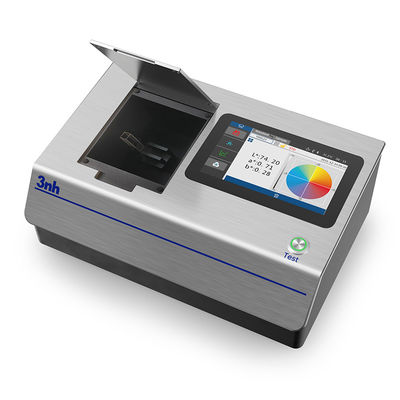

Displayed Data	Spectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring time	Fast mode: about 0.8s
Repeatability	Spectral transmittance: standard deviation within 0.05% ( 400 ~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.015 (after preheating correction, measured at intervals of 5S);
Inter-instrument Error	ΔE*ab within 0.25 (average value of 5 standard transmission color plates measured by the original manufacturer)
Size	Length x width x height = 370 x 300 x 200 mm
Weight	About 9.6kg
Power supply mode	Powered by DC 24V/3A power adapter
Illuminant Life Span	More than 3 million measurements in 5 years

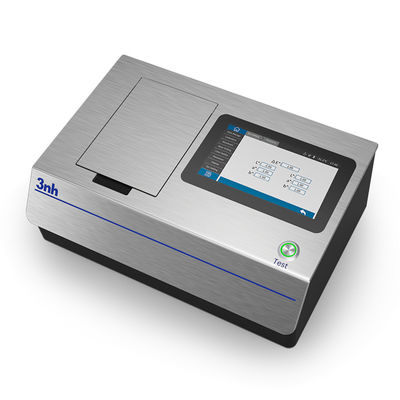

Display	TFT true color 7-inch, capacitive touch screen
Interface	USB, print serial port
Data Storage	1000 Standards, 10000 test samples
Special Features	Intelligent zero calibration
Language	Simplified Chinese, Traditional Chinese, English
Operating temperature range	0~40°C (32~104°F)
Storage temperature range	-20~50°C (-4~122°F)

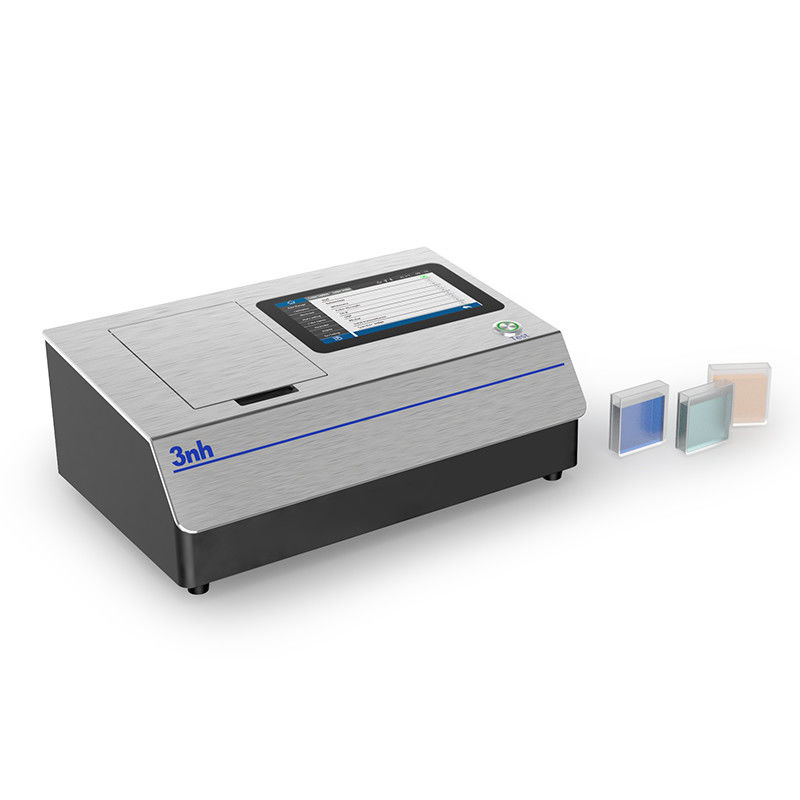

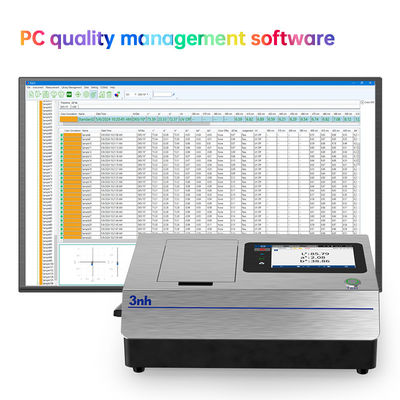

Standard accessories	Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, transmission test fixture assembly, 10mm cuvette, 50mm cuvette, 50mm cuvette fixture
Optional accessories	Micro printer, micropore (4mm) transmission test fixture assembly, 30mm cuvette, 100mm cuvette
Note:	The technical parameters are for reference only, please refer to the actual products sold.

Application

The instrument is widely used in various solvents, drugs, petroleum, industrial oil, cosmetics, food and beverage and other fields. Colorimetric analysis and transmittance testing are also widely used in glass processing, plastic processing, film, display processing, packaging industry, liquid and pharmaceutical analysis and other industries.
