Model | CR9 (Advanced) |
Optical geometry | D/8 (diffuse illumination, 8° direction reception) |
| SCI/SCE measurement |
| Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
Characteristics | Dual measurement aperture, wider adaptability; used for accurate color measurement and quality control in plastic and electronic,
paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
Integrating sphere size | Φ40mm |
Light source | Combined full-spectrum LED light source, UV light source |
Spectroscopic method | Planar grating |
Sensor | Silicon photodiode arrays (dual row 32 groups) |
Wavelength range | 400~700nm |
Wavelength interval | 10nm |
Semiband Bandwidth | 10nm |
Measurement range | L:0~120 |
| Reflectivity: 0~200% |

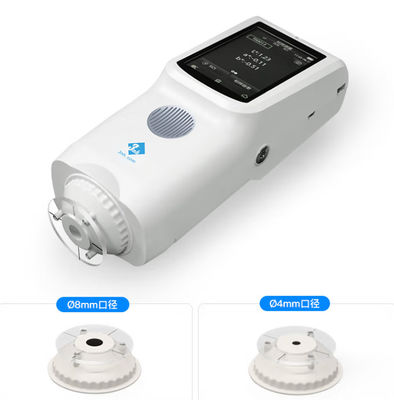

Measurement aperture | Dual apertures：Φ8mm、Φ4mm |
Focusing method | Optical Focus |
Specular component | SCI&SCE |
Color space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2) |
Color difference formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
Other colorimetric indexs | WI(ASTM E313, CIE/ISO,AATCC,Hunter). |
| YI(ASTM D1925, ASTM 313), |
| Metamerism index Mt |
| staining fastness,color fastness,strength, opacity,color card search |
Observer angle | 2°/10° |
Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
Displayed data | Spectrogram/data, chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset |
Display Accuracy | 0.01 |
Measurement time | Approx. 1.5s (Measure SCI & SCE about 3.2s) |
Repeatability | Chromaticity value: MAV/SCI, ΔE*ab within 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after
white calibration) |
Inter-instrument error | MAV/SCI, within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) |
Measurement method | Single measurement, average measurement (2~99 times) |
Locating method | Camera locating,stabilizer locating |
Size | LxWxH=81X71X214mm |
Weight | About 460g |
Battery power | Lithium battery, 6000 times in 8 hours |
Illuminant life span | 5 years, more than 3 million times measurements |
Display | TFT true color 3.5inch, capacitive touch screen |
Data port | USB, Bluetooth® 5.0 |
Data storage | 1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time), APP mass storage |
Language | Simplified Chinese, English, Traditional Chinese |
Operating temperature range | 0~40℃, 0~85%RH (no condensation), altitude< 2000m |
Storage temperature range | -20~50℃, 0~85%RH (no condensation) |
Standard Accessories | Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box,
protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture, MOBCCS APP (official website download) |

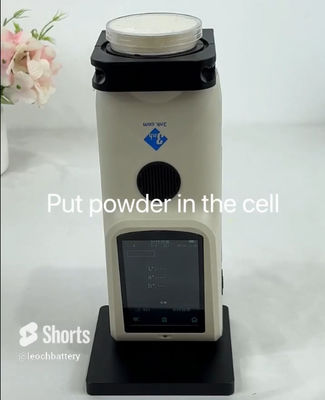

Optional Accessories | USB micro printer, powder test box, Bluetooth micro printer,holder base |
Notes. | Technical parameters are for reference only, subject to the actual sales of products |
