Name: 3NH TS4020 Digital Liquid Colorimeter with Platinum Cobalt & ICUMSA Color Measurement ASTM D1500 Compliant 1-Year Warranty
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Colorimeter

3NH TS4020 Digital Liquid Colorimeter with Platinum Cobalt & ICUMSA Color Measurement ASTM D1500 Compliant 1-Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	Li-ion Battery, 5000 Measurements Within 8 Hours	Accuracy:	0.01
Voltage:	DC 24V/3A Power Adapter	Type:	Testing Machine
Application:	Laboratory Testing, Lab Testing	Protection Class:	Ip55
Industry Test Instrument:	Color Measurement Equipment

Color Space

CIE LAB L(Lightness): 0 is black,100 is white a(Red-Green): positive values are red; negative values are green and 0 is neutral b(Blue-Yellow): positive values are yellow,negative values are blue abd 0 is neutral CIE LCH L: Lightness,value is the same in each scale C: Chroma H:Hue Angle dE Total Color difference Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Delta E	Meaning
0~1	A normally invisible difference
1~2	very small difference, only obvious to a trained eye
2~3.5	Medium difference, also obvious to an untrained eye
3.5~5	An obvious difference
>6	A very obvious difference

Products Description

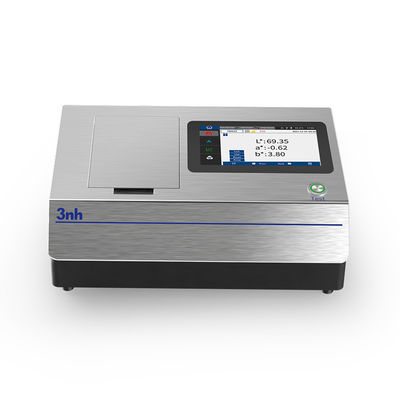

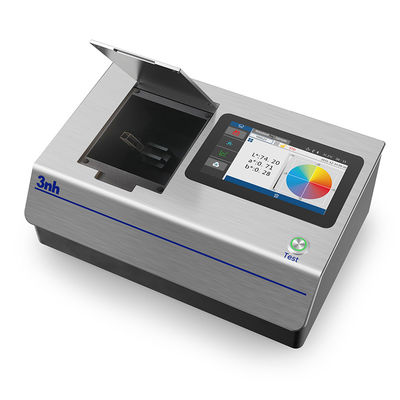

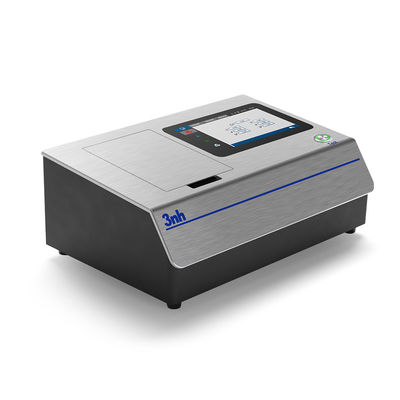

Liquid colorimeter TS4020

The liquid colorimeter TS4020 is a highly accurate color analysis tool designed for liquid colorimetric measurement using innovative core technology. Using D/0 optical structure, equipped with all-band LED light source and high-performance test system, to provide a variety of chromaticity indicators, including transmittance, chromaticity, color difference, platinum cobalt index, Gardner, Seibert index, oil color scale, pharmacopoeia chromaticity, support micro transmission measurement, measurement speed. Widely used in the chemical industry, food and beverage, petrochemical, pharmaceutical industry and other fields of colorimetric measurement needs.

Product model	TS4020
Lighting mode	Transmission: D/0 (diffuse illumination, 0° direction reception);Approximate CIE15 provisions 0/0 (parallel light illumination /0 degree reception);Standards :GB/T 3978,GB/T 18833,GB 2893 ASTM D1003/1044,CIE No.15,ASTM E308,DIN5033 Teil7

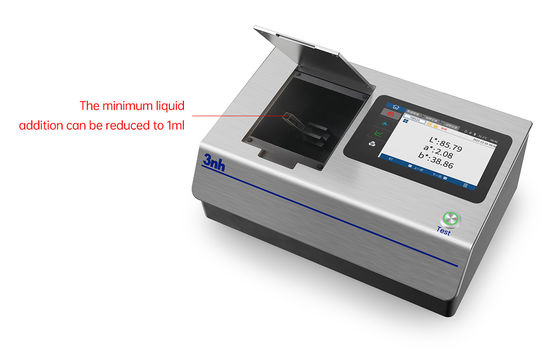

peculiarity	National Standard Pharmacopoeia color measurement, glass processing, plastic processing, film, display processing, packaging industry, liquid pharmaceutical analysis and other industries chroma analysis, transmittance test are widely used, support micro transmission measurement
Integrating Sphere Size	Φ40mm
Lighting source	Combined full spectrum LED light source
Spectroscopic method	Planar grating spectroscopy
Sensor	Silicon photodiode array (double row 40 groups)
Wavelength Range	360-780nm
Wavelength Interva	10nm
Semiband Width	5nm
Transmittance measurement range	0~200%
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 ,CMYK(The above part is realized by the upper computer)
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter),ΔE*CH
Other Colorimetric Index	The transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM E313),TI(ASTM E313, CIE/ISO), isochromatic index Mt, color fastness, color changing fastness, absorbance,APHA/Hazen/Pt-Co (platinum-cobalt index), Gardner Index, iron-Cobalt index, Saybolt (Seibert Index),ASTM D1500 Color scale, Pharmacopeia(Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia),EBC (Beer color), ICUMSA Color(sugar color)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30，B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5(41 light sources in total,part achieved via software in PC)

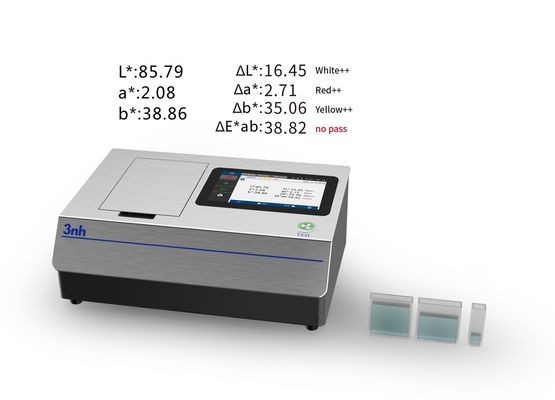

Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time	Fast mode approx. 0.8s
Repeatability	Spectral transmittance: standard deviation within 0.05% (360~780nm: within 0.04%);Chroma value: within ΔE*ab 0.01 (after preheating correction, measured at an interval of 5S);
Inter-instrument Error	ΔE*ab≤ 0.2
Dimension	LWH=370X300X200mm
Weight	Approx.9.6kg
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, capacitive touch screen
Data Port	USB, print serial port,Bluetooth
Data Storage	1000 standards, 20000 samples; Host computer mass storage
Special function	Intelligent zero calibration
Language	Simplified Chinese, Traditional Chinese,English
Operating Environment	0~40℃（32~104°F）
Storage Environment	-20~50℃（-4~122°F）

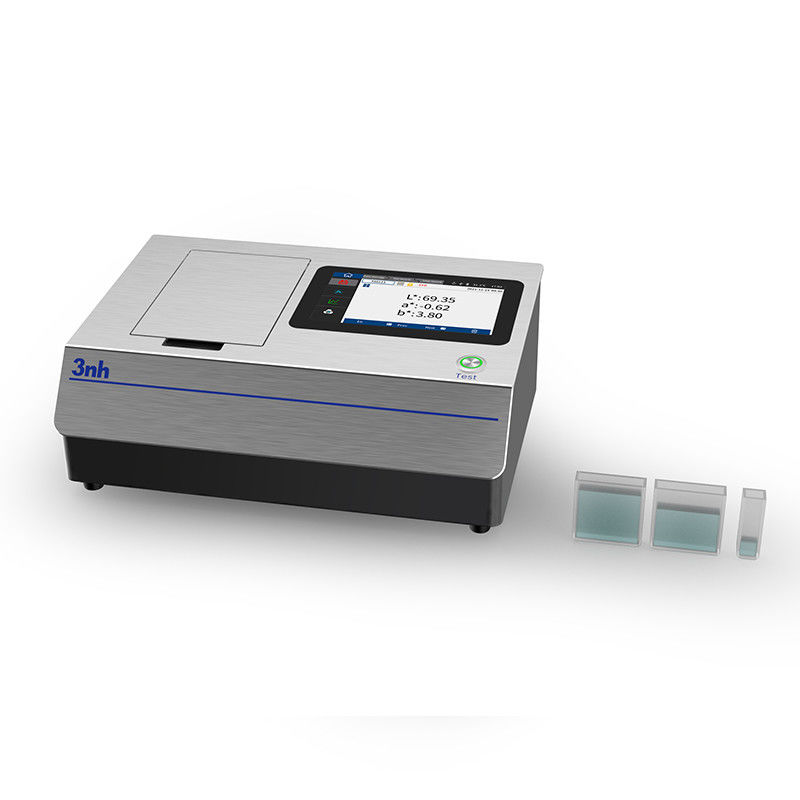

Standard Accessory	Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, 10mm colorimetric dish, 50mm colorimetric dish, 50mm colorimetric dish fixture, microporous (4mm) transmission test fixture assembly
Optional Accessory	Micro printer, 30mm cupola,100mm cupola
Note	Subject to change without prior notice

Application

The instrument is widely used in various solvents, drugs, petroleum, industrial oil, cosmetics, food and beverage and other fields. Colorimetric analysis and transmittance testing are also widely used in glass processing, plastic processing, film, display processing, packaging industry, liquid and pharmaceutical analysis and other industries.

Product packaging

Company Profile

Shenzhen 3nh/Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in color management field and color management field. After years of intensive research, 3nh has launched NH series colorimeter, NR series colorimeter, NS series spectrophotometer, ISO12233 resolution test chart, optical image test solution and specific standard illuminant. Our products are widely used in plastic, electronic, paint, ink, textile, garment, printing anddyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported all around the world. We can provide customization service which has been well received by customers.

3nh adheres to the business philosophy of "people-oriented, customer first, technological innovation, sustainable development" to meet customers' demands continuously, to create value for customers and to achieve a win-win situation and common development.

Certifications

Guangdong Threenh Technology Co.,Ltd.passed CE, ISO 9001, ROHS, FCC, TUV certifications.

Exhibition

We join all over the world exhibitions, including China plas, China coating, Printing and Packaging, and CIOE etc.

FAQ

Frequently Asked Questions
1. Which brands are 3nh models to equal?
Answer: 3nh color test instruments compared with KONICA MINOLTA and X-rite and BYK.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. We offer OEM&ODM service for free.
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
