Name: 3nh High-Precision Desktop Petroleum Color Code EBC ICUMSA Color Colorimeter TS4003 for Accurate Color APHA/Hazen Measurement
Brand: Guangdong Threenh Technology Co., Ltd.
SKU: TS4003
Availability: InStock

Home Products Colorimeter

3nh High-Precision Desktop Petroleum Color Code EBC ICUMSA Color Colorimeter TS4003 for Accurate Color APHA/Hazen Measurement

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh
Model Number:	TS4003

Contact Now

Detailed Product Description

IP Rating:	None	Type:	Desktop Liquid Colorimeter
Operating Temperature:	0~40℃(32~104°F)	Light Source:	LED
Communication Method:	USB	Wavelength Resolution:	10nm
Product Name:	Desktop Liquid Colorimeter	Function:	Color Analysis And Transmittance Testing
Model:	TS4003	Measurement Range:	0~200%
Accuracy:	Spectral Transmittance: Standard Deviation Within 0.05%	Inter-instrument Error:	DeltaE*ab Within 0.25
Wavelength Range:	360 ~780 Nm	Measuring Aperture:	10mm
Color Space:	CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, S-RGB, HunterLab	Other Color Indexes:	Absorbance, APHA / Hazen / Pt-Co, Gardner Index, Iron-Cobalt Index

Product Description

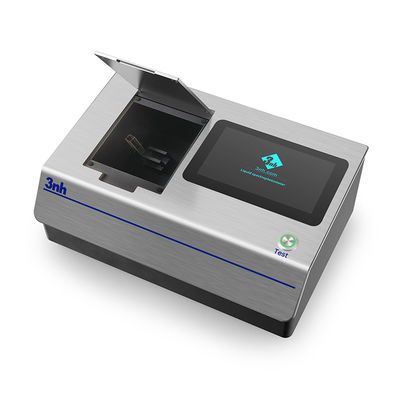

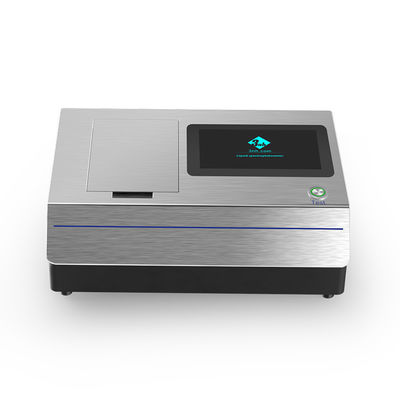

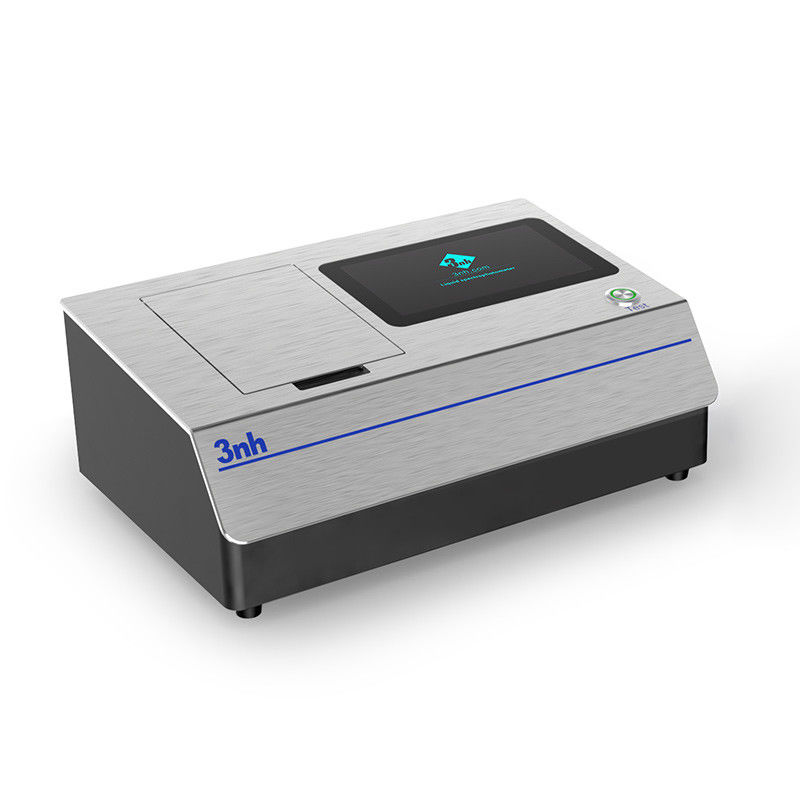

Liquid Colorimeter TS4003 is a professional colorimetric analysis instrument. The application software supports calculations of multiple color spaces and color difference formulas. It can also measure transmittance and multiple colorimetric indicators to meet the diverse needs of different industries. Its application areas include glass processing, plastic processing, film, display processing, packaging industry, and liquid medicine analysis.

1. Rich chromaticity indicators

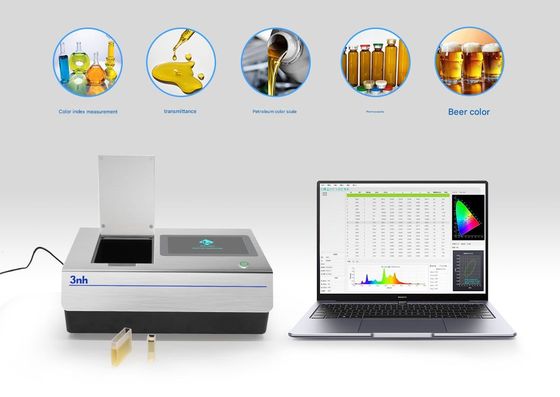

In addition to commonly used color indicators, we can also provide color indicators such as transmittance, petroleum color code (ASTM D1500), platinum cobalt index, Gardner index, Saybolt index, pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color), etc., to meet the diverse industry needs.

2. Intelligent zero calibration

Adopting intelligent zero calibration technology, adapting to different measurement environments, maintaining good measurement performance of the instrument, it can ensure the accuracy of measurement data and high consistency of measurement results.

3.Excellent repeatability and inter errors

Ultra-high repeatability and inter-device difference: Spectral transmittance repeatability ≤ 0.05%, chromaticity repeatability ≤ 0.015ΔE, and inter-device difference between multiple devices ≤ 0.25ΔE, ensuring quality control consistency. Fast detection efficiency: A single measurement takes only 0.8 seconds. With the automatic calibration function, 300+ samples can be continuously tested per hour, significantly improving measurement efficiency.

4. Multivariate light source simulation

Built in a series of standard light sources recognized by the International Commission on Illumination to ensure accurate color
measurement of your product under different light sources.

5. Full spectrum accurate analysis The D/0 optical structure (diffuse illumination, 0° reception) and full-band LED light source (360-780nm) are used in conjunction with a dual-array silicon photodiode sensor to simultaneously measure parameters such as transmittance, chromaticity, color difference, and spectral curves to achieve high-precision measurement.

6. Convenient accessory expansion Standard 10mm/50mm cuvette, compatible with 30mm/100mm specifications, can adapt to different sample volumes to meet personalized needs.

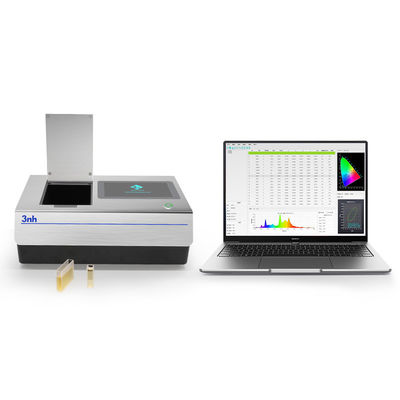

7. PC quality management software

Provide powerful analysis software, suitable for quality management in various industries, generate test reports based on user
test results, and facilitate customer customization and management work.

Specification

Model	TS4003 Liquid spectrophotometer
Illumination	Transmission: D/0 (diffuse illumination, 0° Viewing); Approximately CIE15 stipulates 0/0 (parallel light illumination/0 degree reception); Comply with standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
Characteristic	It is widely used in chromaticity analysis and transmittance testing in industries such as glass processing, plastic processing,film, display processing, packaging industry, and liquid medicine analysis.
Integrating sphere size	Φ 40 mm
Light source	Combined full spectrum LED light source
Spectral method	Plat grating spectrometer
Sensor	Silicon photodiode array (dual row 40 groups)
Wavelength range	360 ~780 nm
Wavelength interval	10nm
Half bandwidth	5nm
Transmittance range	0~200%
Measuring aperture	Transmission: Φ 10 mm
Color Space	CIE LAB,XYZ,Yxy, LCh,CIE LUV,Musell, s-RGB,HunterLab, βxy,DIN Lab99
Color difference formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter),ΔE*CH
Other color indexes	Transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Staining Fastness,Color fastness,absorbance, APHA / Hazen / Pt-Co (Platinum-Cobalt Index), Gardner Index, Iron-Cobalt Index, Saybolt (Saybolt Index), ASTM D1500 color scale, Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (a total of 41 light sources, the above part is realized by the host computer)
Displayed Data	Spectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring time	Fast mode: about 0.8s
Repeatability	Spectral transmittance: standard deviation within 0.05% ( 400 ~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.015 (after preheating calibration, measured at intervals of 5S);
Inter-instrument Error	ΔE*ab within 0.25 (average value of 5 standard transmission color plates measured by the original manufacturer)
Size	Length x width x height = 370 x 300 x 200 mm
Weight	About 9.6kg
Power supply mode	Powered by DC 24V/3A power adapter
Illuminant Life Span	More than 3 million measurements in 5 years
Display	TFT true color 7-inch, capacitive touch screen
Interface	USB, print serial port
Data Storage	1000 Standards, 10000 test samples
Special Features	Intelligent zero calibration
Language	Simplified Chinese, Traditional Chinese, English
Operating temperature range	0~40°C (32~104°F)
Storage temperature range	-20~50°C (-4~122°F)
Standard accessories	Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, 10mm cuvette, 50mm cuvette, 50mm cuvette fixture
Optional accessories	micropore (4mm) transmission test fixture assembly, 30mm cuvette, 100mm cuvette
Note:	The technical parameters are for reference only, please refer to the actual products sold.
