Name: 3nh Digital HG60S Glossmeter Economic Paint Analysis Instrument for Color Finishes
Brand: Guangdong Threenh Technology Co., Ltd.
SKU: HG60S
Availability: InStock

Home Products Gloss Meter

3nh Digital HG60S Glossmeter Economic Paint Analysis Instrument for Color Finishes

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh
Model Number:	HG60S

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Product Name:	GLOSS METER	Application:	Floor, Marber, Ceramic, Paper, Plastic
Power Supply:	220v	Model:	HG60S
Material:	Plastic	Measurable Range:	200gu
Light Source:	LED	Accuracy:	0.01
MOQ:	1 PCS	Calibration:	Auto Calibration

Products Description

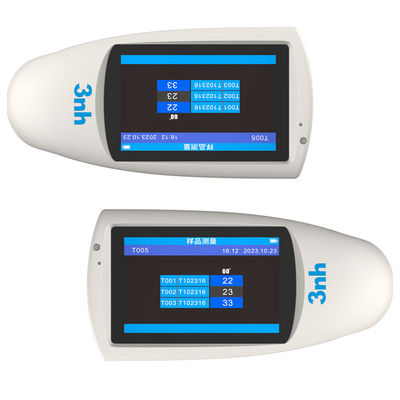

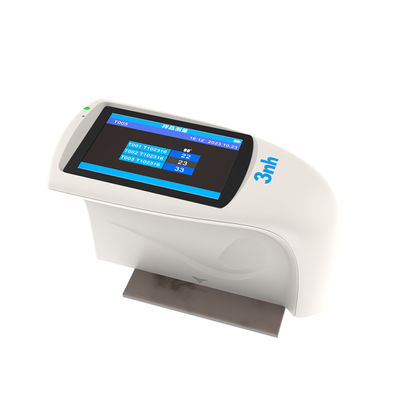

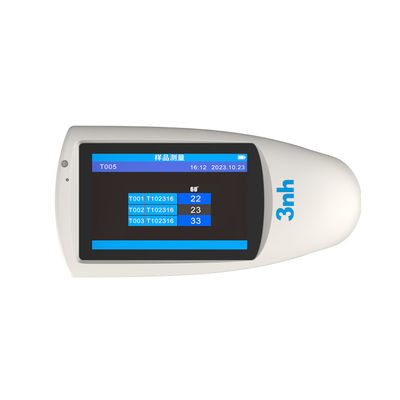

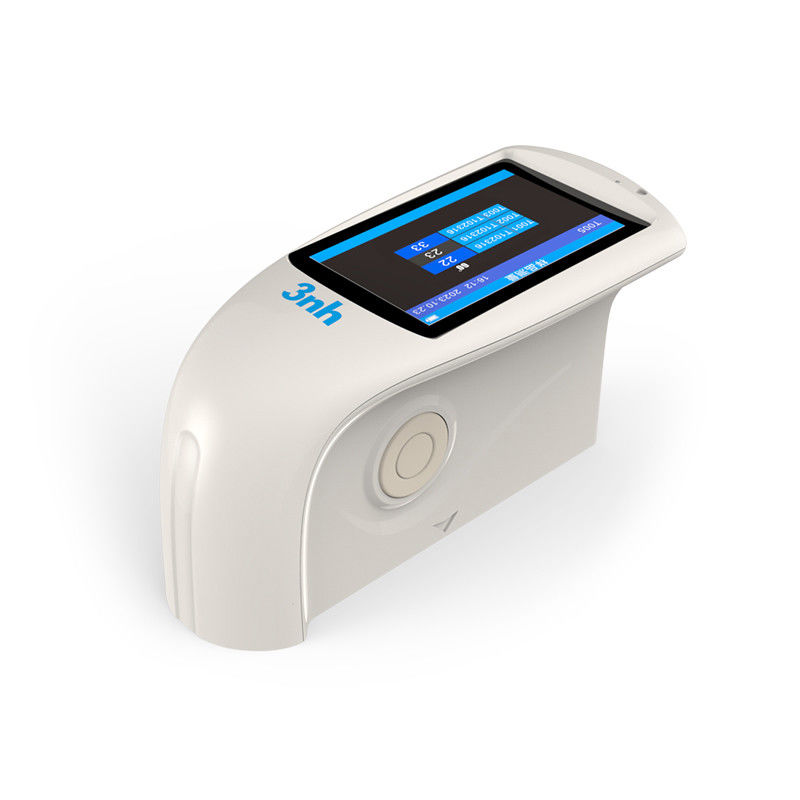

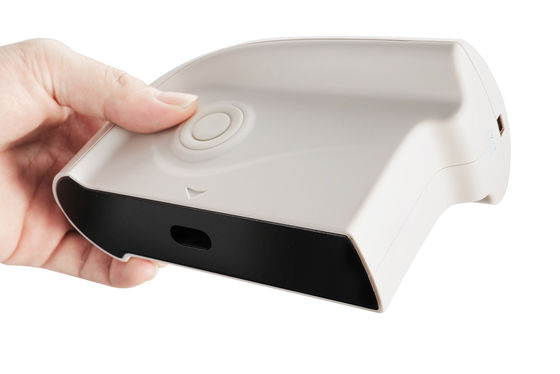

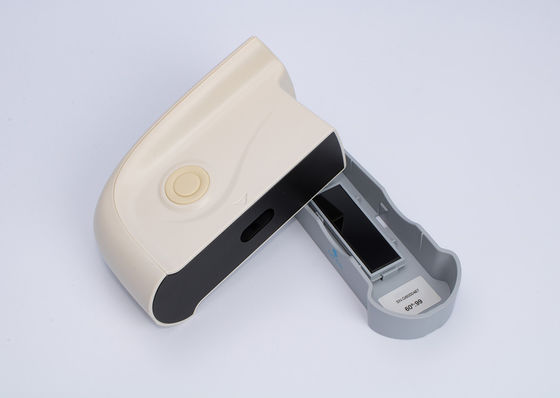

HG60S Economic Gloss Meter

HG60S cheap gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with
international standards of ASTM D523, ASTM D2457. HG60S economic glossmeter conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

HG60S 200gu gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish,
coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware
industries, etc.

Product Paramenters

HG60S Economic Glossmeter
HG60S Economic Glossmeter
Model:	HG60S cheap gloss meter
Measuring Angle	60° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm)	9x15
Measuring Range	0~200GU
Division Value	1GU
Measurement Range Repeatability Reproducibility	0-200GU ±1GU ± 1GU
Measurement Standard	Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.5s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Language	Chinese/English
Battery	3200mAh Li-ion Battery, >10000 times(within 8 hours)
Display	TFT 3.5 inch
Interface	USB/RS-232
Storage	Basic mode: 1000
Software	/
Operation Temperature	0~40℃（32~104°F）
Storage Temperature	-20~50℃（-4~122°F）
Humidity	<85% relative humidity, no condensation
Standard Accessories	Power Adapter, USB cable, User Manual, Calibration Plate
Optional Accessories	Miniature Printer
Note	The specifications are subject to change without notice.
Display Accuracy	0.01
Measurement time	Approx. 1.5s
Repeatability	Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error	MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)
Measurement method	Single measurement, average measurement (2~99 times)
Locating method	Stabilizer locating
Size	LxWxH=81X71X214mm
Weight	About 460g
Battery power	Lithium battery, 6000 times in 8 hours
Illuminant life span	5 years, more than 3 million times measurements
Display	TFT true color 3.5inch, capacitive touch screen
Data port	USB, Bluetooth® 5.0
Data storage	500 standard samples, 1,0000 samples , APP mass storage
Language	Simplified Chinese, English, Traditional Chinese
Operating temperature range	0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range	-20~50℃, 0~85%RH (no condensation)
Standard Accessories	Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)
Optional Accessories	USB micro printer, powder test box, Bluetooth micro printer,holder base
Notes.	Technical parameters are for reference only, subject to the actual sales of products

Recommend Products

Company Profile

Guangdong Threenh Technology Co.,Ltd. and Shenzhen TILO Technology Co., Ltd. was found in 1998, and we have 3 factories, about 15000 square meters, seperately in Guangzhou and Huizhou of Guangdong Province, and the third one in Jiangxi Province and many offices in China like Shanghai, Shenzhen, Hangzhou, Qinigdao, Beijing, ETC. We are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 30 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications. We also can support OEM&ODM service for free for all over the world customers.

Company

Office

Factory

Honor

Certificates and Meeting Room

Warehouse

Exhibition

Customer Photos

Product packaging

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
