Name: 3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Gloss Meter

3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM, Software Reengineering
Power:	5W	Accuracy:	0.1
Voltage:	100-240	Type:	Testing Machine
Application:	Auto Testing, Universal Testing, Plastic Testing, Textile Testing, Paper Testing, Leather Testing, Wood Testing, Laboratory Testing, Lab Testing, Electrical Testing	Protection Class:	None
Measurement Range:	60°: 0-1000GU	Division Value:	0.1GU
Accurate:	Conform With JJG696 Requirements Of Gloss Meter	Storage:	35000
Interface:	USB	PC Software:	GQC6
Measuring Time:	0.5S	Repeatability:	0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Display:	2.3 Inch White And Black Screen	Power Supply:	1pc Dry-cell Battery(can Measure 10000 Times) Or Use USB Charge

Product Description

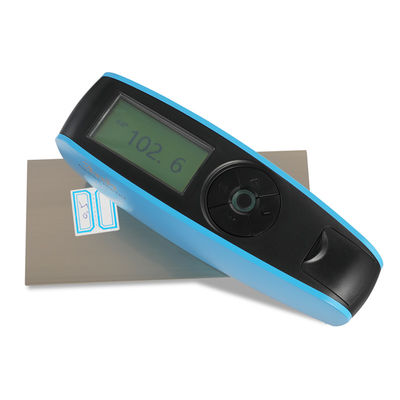

Micropore gloss meter YG60M is a high-precision small-aperture handheld gloss meter developed by 3nh , which is professionally used for gloss measurement of curved surfaces or ultra-small objects. The instrument adopts a 60° universal angle design, with a range of up to 1000GU, simple operation and strong portability. It is widely used in gloss measurement and quality inspection in paints, inks, coatings, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.

Product Features of Micropore High Precision Gloss Meter YG60M 1. Micropore design It adopts an extremely small measuring aperture of 2 x4 mm , which is suitable for gloss detection of samples such as curved surfaces, irregular objects , and small objects , and has a wider range of applications.
2. High measurement accuracy The carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement , meeting the requirements of JJG 696 working gloss meter, with superior performance, which can fully match the test data of imported gloss meters.

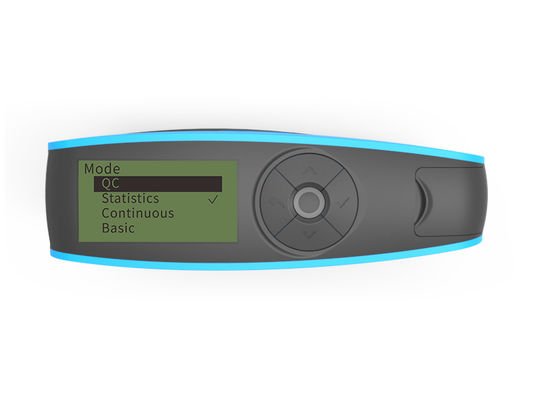

3. Multi-mode measurement Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .

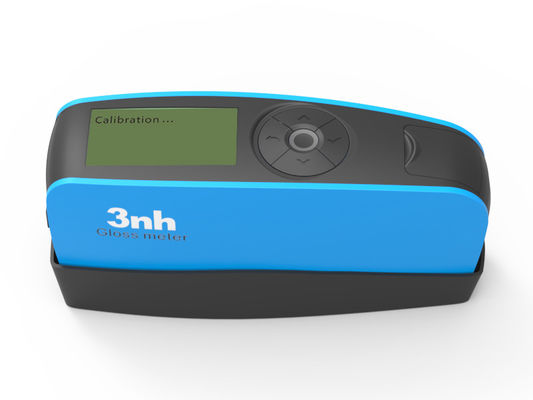

4. Calibration function Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.

5. Low power consumption A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.

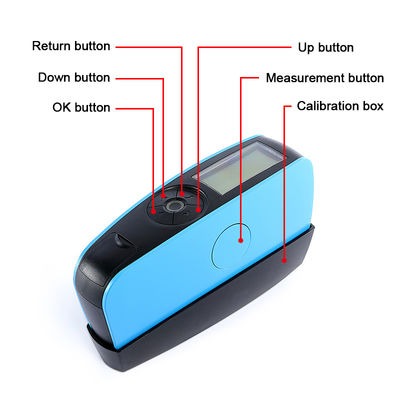

6. Simple operation, easy to use The instrument is easy to operate and can be used immediately after being turned on. Data can be locked with one button. No complicated settings are required and the measurement can be completed in 0.5 seconds.

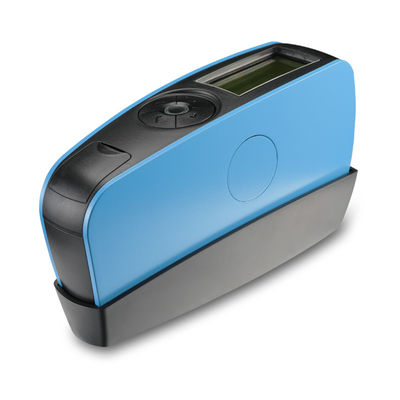

7. Lightweight and portable The instrument is designed based on ergonomics, with a compact and beautiful appearance and a comfortable grip. It is not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.

8. PC quality management software The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.
Application
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

Specification

Product number	YG60M 60° Micropore High Precision Gloss Meter
Measuring Angles	60°
Measuring spot(mm)	60°:2X4
Measuring range	60°: 0~1000GU
Graduation value	0.1GU
characteristic	It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Measurement Mode	Basic mode, statistical mode, continuous mode, quality control mode
measure time	0.5 seconds
Repeatability	0~100GU:±0.2GU ; 100~1000GU:±0.2%GU
accuracy	Meet the requirements of JJG 696 working gloss meter
Automatic shutdown time	30~120 seconds optional
Long time calibration	Auto Identify Calibration Board and Calibrate / manual calibration
language	Simplified Chinese, English, Traditional Chinese
Storing data	35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display	2.3 inch black and white display
size	160X52X84mm
weight	About 300g (including calibration box and batteries)
power supply	1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port
interface	USB
PC Software	GQC6 quality management software, quality inspection report printing, more functional expansion
Operating temperature range	0~40°C (32~104°F)
Storage temperature range	-20~50°C (-4~122°F)
humidity	Less than 85% RH, no condensation
Standard accessories	USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board
Optional accessories	Micro printer, Bluetooth 5.0 adapter
Note	The technical parameters are for reference only, please refer to the actual products sold
