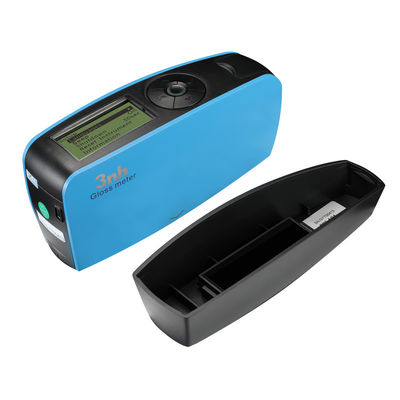

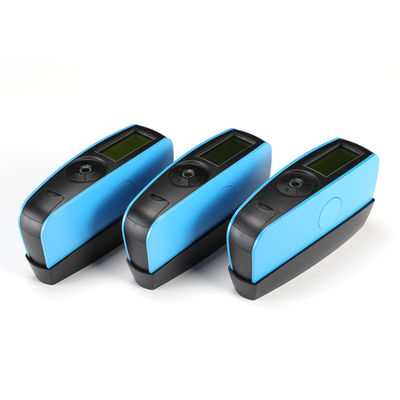

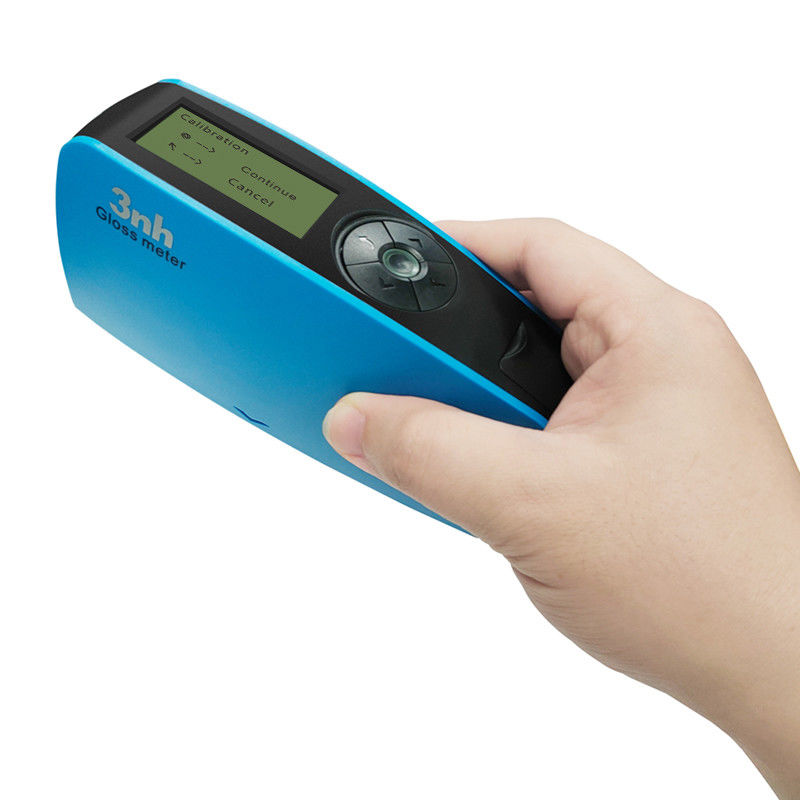

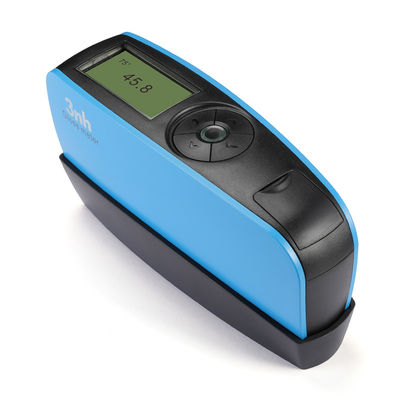

Name: 3nh New High Precision YG75 Ceramic Paper Film Gloss Meter 75 Degree Testing Equipment with 1 Year Warranty
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Gloss Meter

3nh New High Precision YG75 Ceramic Paper Film Gloss Meter 75 Degree Testing Equipment with 1 Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM, Software Reengineering
Power:	5W	Accuracy:	0.1
Voltage:	100-240	Type:	Testing Machine
Application:	Auto Testing, Universal Testing, Plastic Testing, Textile Testing, Paper Testing, Leather Testing, Wood Testing, Laboratory Testing, Lab Testing, Electrical Testing, Ceramic Paper Film, Coating, Plastic Electronics, Furniture, Marble	Protection Class:	None
Measurement Range:	75°: 0~150GU	Division Value:	0.1GU
Accurate:	Conform With JJG696 Requirements Of Gloss Meter	Storage:	35000
PC Software:	GQC6	Measuring Time:	0.5S
Repeatability:	0~100GU:±0.2GU ; 100~150GU:±0.2%GU	Display:	2.3 Inch White And Black Screen
Power Supply:	1pc Dry-cell Battery(can Measure 10000 Times) Or Use USB Charge

Product Description

75 ° High Precision Gloss Meter YG75 is a professional instrument for measuring the gloss of an object surface. It uses the 75 °angle measurement method to accurately measure the gloss of the product surface and is widely used in gloss measurement and quality inspection in paper, film, plastic and other industries.

75° High Precision Gloss Meter YG75 Product Features
1. Good operating experience
The streamlined curved surface design is more ergonomic, and it can maintain a comfortable grip even in daily or continuous work, effectively avoiding fatigue and bringing a good operating experience to users.

2. Multi-mode measurement
Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .45° High Precision Gloss Meter YG45 Product Features 3. Low power consumption
A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.
4. Calibration function
Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.

5. Lightweight and portable
The instrument is designed based on ergonomics, with a compact and beautiful appearance and a comfortable grip. It is not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.

6. Excellent inter-instrument difference and repeatability The repeatability is very good. In the measurement range of 0-100GU, the repeatability can reach ±0.5GU, and in the measurement range of 100-800GU, the repeatability can reach ±0.5% GU .

7. High-precision measurement Carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement.

8. PC quality management software
The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.

Application
Widely used in the filed of Ceramic, Paper, Thin Film, paints,coating,plastics,ink,rubber,printing, glass, handware, marble etc.

Specification

Product number	YG75 75° High Precision Gloss Meter
Measuring Angles	75°
Measuring spot (mm)	75°:4x6
Measuring range	75°: 0~150GU
Graduation value	0~100GU:0.1GU; 100~150GU:1GU
characteristic	It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Measurement Mode	Basic mode, statistical mode, continuous mode, quality control mode
measure time	0.5 seconds
Repeatability	0~100GU:±0.2GU ; 100~150GU:±0.2%GU
accuracy	Meet the requirements of JJG 696 working gloss meter
Automatic shutdown time	30~120 seconds optional
Long time calibration	Auto Identify Calibration Board and Calibrate / manual calibration
language	Simplified Chinese, English, Traditional Chinese
Storing data	35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display	2.3 inch black and white display
size	160X52X84mm
weight	About 300g (including calibration box and batteries)
power supply	1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port
interface	USB
PC Software	GQC6 quality management software, quality inspection report printing, more functional expansion
Operating temperature range	0~40°C (32~104°F)
Storage temperature range	-20~50°C (-4~122°F)
humidity	Less than 85% RH, no condensation
Standard accessories	USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board
Optional accessories	Micro printer, Bluetooth 5.0 adapter
Note	The technical parameters are for reference only, please refer to the actual products sold
