Name: NHG60 60 Degree 3NH Digital Gloss Meter ISO2813 Standard USB Interface 220V Voltage 1-Year Warranty 0-1000GU Range
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Gloss Meter

NHG60 60 Degree 3NH Digital Gloss Meter ISO2813 Standard USB Interface 220V Voltage 1-Year Warranty 0-1000GU Range

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM, Software Reengineering
Power:	5w	Accuracy:	0.01
Voltage:	220V, 110V	Type:	Testing Machine
Application:	Auto Testing, Universal Testing	Protection Class:	Ip55
Measurement Range:	60°: 0-1000GU	Division Value:	0.1GU
Accurate:	Conform With JJG696 Requirements Of Gloss Meter	Storage:	11000
Interface:	USB	Display:	TFT 3.5 Inch, Capacitive Touch Screen
Port:	USB/RS-232	Errors:	±1.2 , ± 1.2%
Measuring Time:	1S	Software:	GQC6 Quality Control Software

Product Description

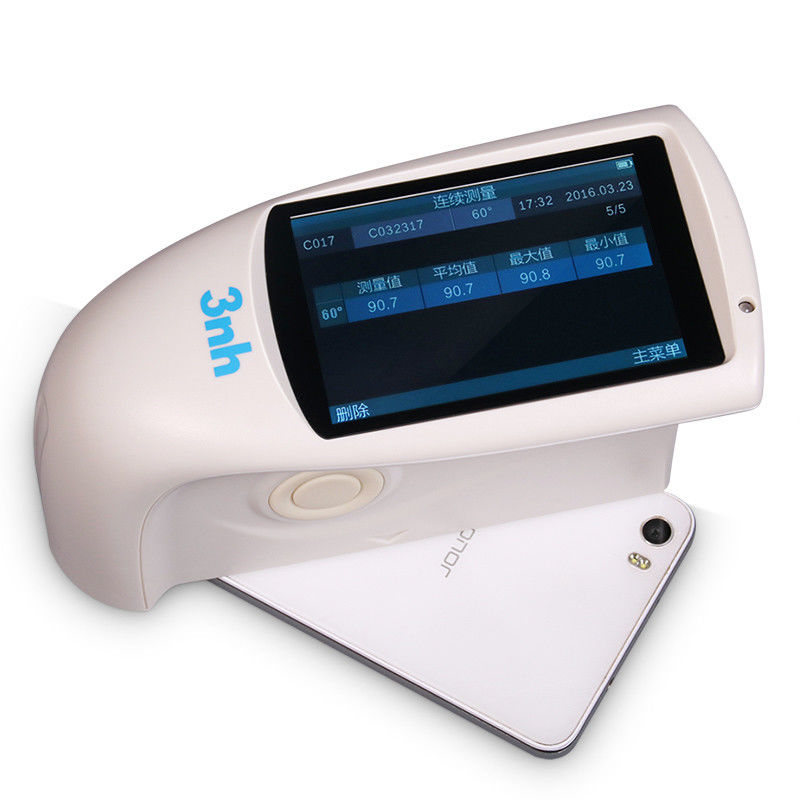

3nh NHG60 digital gloss meter

NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Features:
1. 60° angle for semi gloss
2. Display 5 sets of measurement data, good for comparison
3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
4. Continuous mode to check uniformity over large areas
5. Connect to PC, more extend functions
6. Input gloss value manually
7. Large touch screen operation, easy to use
8. Beauty appearance, good man-machine communication interface
9. Powerful functions to meet many different requirements
10. Large storage to save over 5000 data
11. Built-in lithium ion rechargeable battery.

Specification

Model	NHG60
Measure Angle	60° Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457
Measuring Area (mm)	9X15
Measurement Range	0~1000GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard	Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.2 , ± 1.2%
Measuring Time	0.5s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Language	Chinese/English
Battery	3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen	TFT 3.5 inch, capacitive touch screen
Interface	USB/RS-232
Data Save	Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40℃（32~104°F）
Storage Temperature	-20~50℃（-4~122°F）
Humidity	<85% relative humidity, no condensation

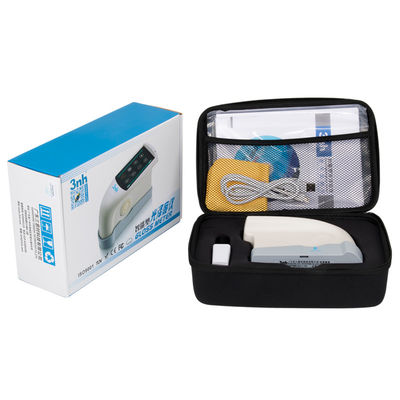

Standard Accessories	Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories	Miniature Printer
Note	The specifications are subject to change without notice.
