Warranty: | 1 Year | Customized Support: | OEM, ODM, Software Reengineering |
---|---|---|---|
Power: | 5w | Accuracy: | 0.01 |
Voltage: | 100-240 | Type: | Testing Machine |
Application: | Auto Testing, Universal Testing, Plastic Testing, Textile Testing, Paper Testing, Leather Testing, Wood Testing, Lab Testing, Electrical Testing | Protection Class: | Ip67 |
Measurement Range: | 60°: 0-200GU | Division Value: | 1GU |
Accurate: | Conform With JJG696 Requirements Of Gloss Meter | Storage: | None |
Interface: | USB | PC Software: | None |
Measuring Time: | 0.5S | Repeatability: | 0~100GU : ±1GU; 100~200GU : ±1%GU |
Display: | 2.3 Inch White And Black Screen | Power Supply: | 1pc Dry-cell Battery(can Measure 10000 Times) Or Use USB Charge |

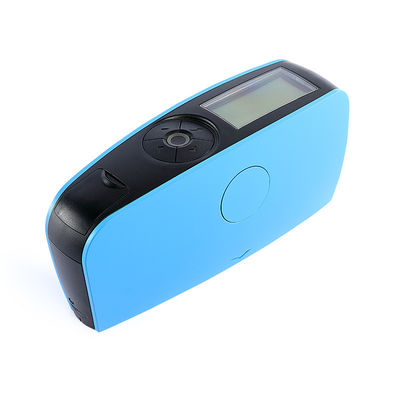

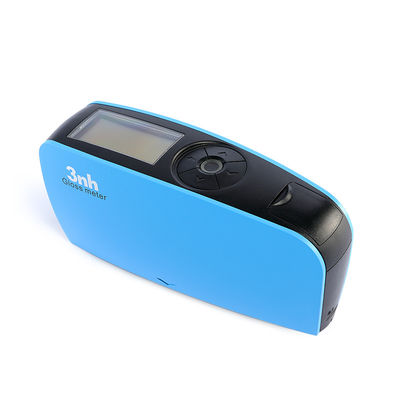

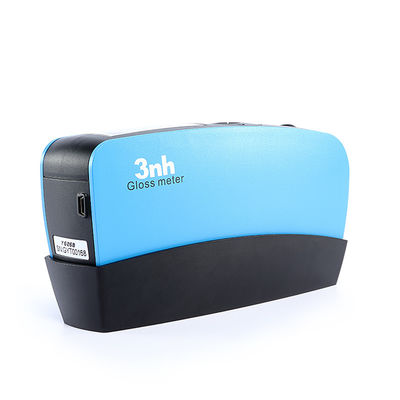

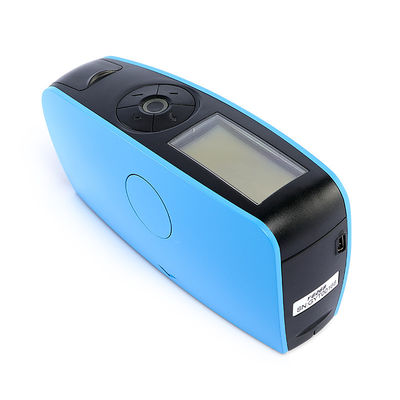

Model | YG60S 60°Economic Gloss Meter | |
Measuring Angle | 60° | |
Measurement range | 60°: 0-200GU | |
Division Value | 1GU | |
Measuring Modes | Basic mode | |
Measuring Time | 0.5S | |
Repeatability | 0~100GU : ±1GU; 100~200GU : ±1%GU | |
Accurate | Conform with JJG696 requirements of gloss meter | |
Auto Power-off Time | 30s | |
Long-time Calibration | / | |
Language | Chinese & English | |
Storage | / | |
Display | 2.3 inch white and black screen | |
Size | 160*52*84mm | |
Weight | About 300g | |
Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | |
Interface | USB | |
PC Software | / | |
Operation Temperature Range | 0-40℃(32-104° F) | |
Storage Temperature Range | -20-50℃(-4-122° F) | |
Humidity Range | < 85% RH, without condensation | |

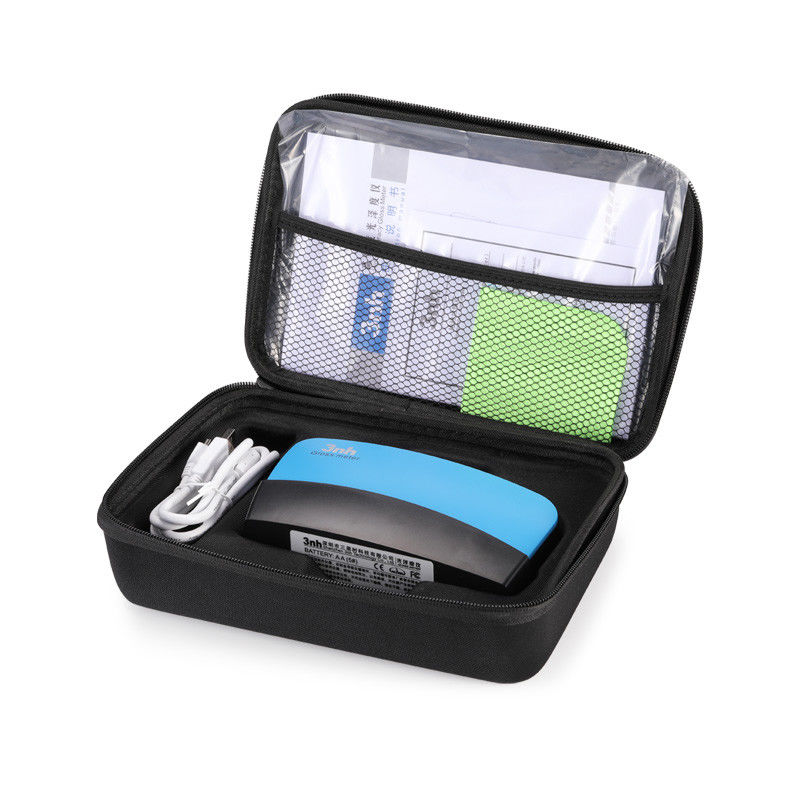

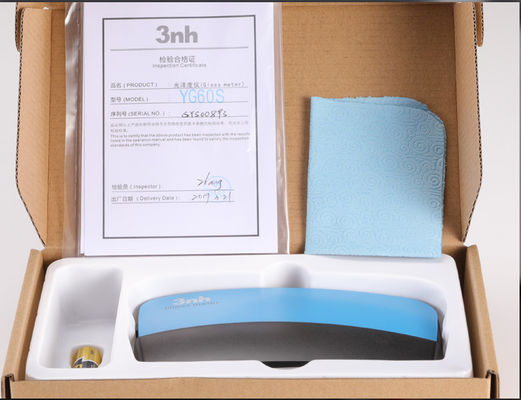

Standard Accessories | User manual, calibration plate | |
Optional Accessories | Miniature printer,Bluetooth | |
Notification: the technical parameter is only for reference |
