Name: Professional YG60 Gloss Meter with 1-Year Warranty High Accuracy 0-1000GU Range for Quality Control
Brand: Guangdong Threenh Technology Co., Ltd.
Availability: InStock

Home Products Gloss Meter

Professional YG60 Gloss Meter with 1-Year Warranty High Accuracy 0-1000GU Range for Quality Control

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3nh

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	1pc Dry-cell Battery	Accuracy:	0.01
Voltage:	Other	Type:	Testing Machine
Application:	Plastic Testing, Textile Testing, Paper Testing, Leather Testing, Wood Testing, Laboratory Testing, Lab Testing	Protection Class:	Ip55
Industry Test Instrument:	Gloss Measurement Equipment

Gloss Meter

A glossmeter (also gloss meter) is an instrument which is used to measure specular reflection gloss of a surface. Gloss is
determined by projecting a beam of light at a fixed intensity and angle onto a surface and measuring the amount of reflected light at an equal but opposite angle.

Gloss Range	60° Value	Notes
High Gloss	>70 GU	If measurement exceeds 70 GU, change test setup to 20°
Medium Gloss	10 – 70 GU
Low Gloss	<10 GU	If measurement is less than 10 GU, change test setup to 85°

If the measurement made at 60° is greater than 70 GU, the measurement angle should be changed to 20° to optimize measurement accuracy. Four types of instruments are available on the market: 60° single angle instruments, a combination of 20°, 60° and 85° and one type that combines 45° and 75°.

Angles	20°	60°	85°	45°	75°
Glossy	High Gloss	Medium Gloss	Low Gloss	Medium Gloss	Low Gloss
Application	Coatings, plastics and related materials					Ceramics, Plastic film	Paper, Printing

Products Description

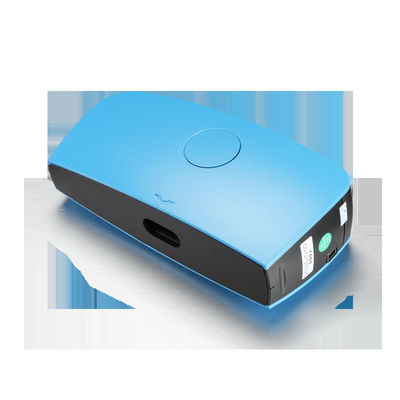

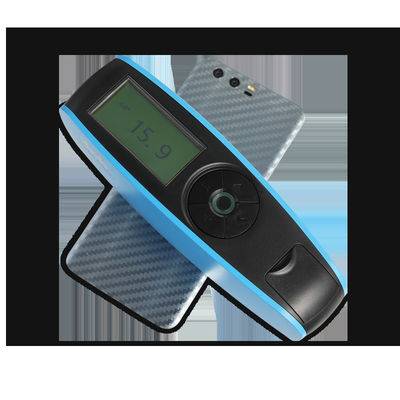

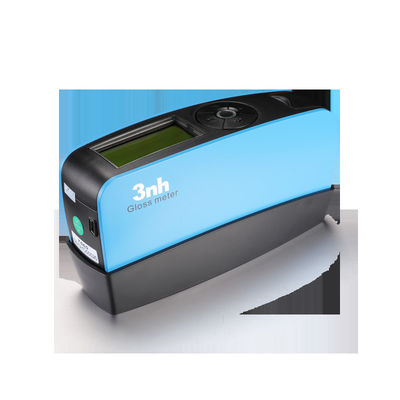

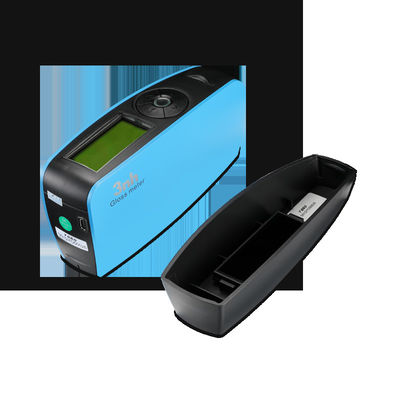

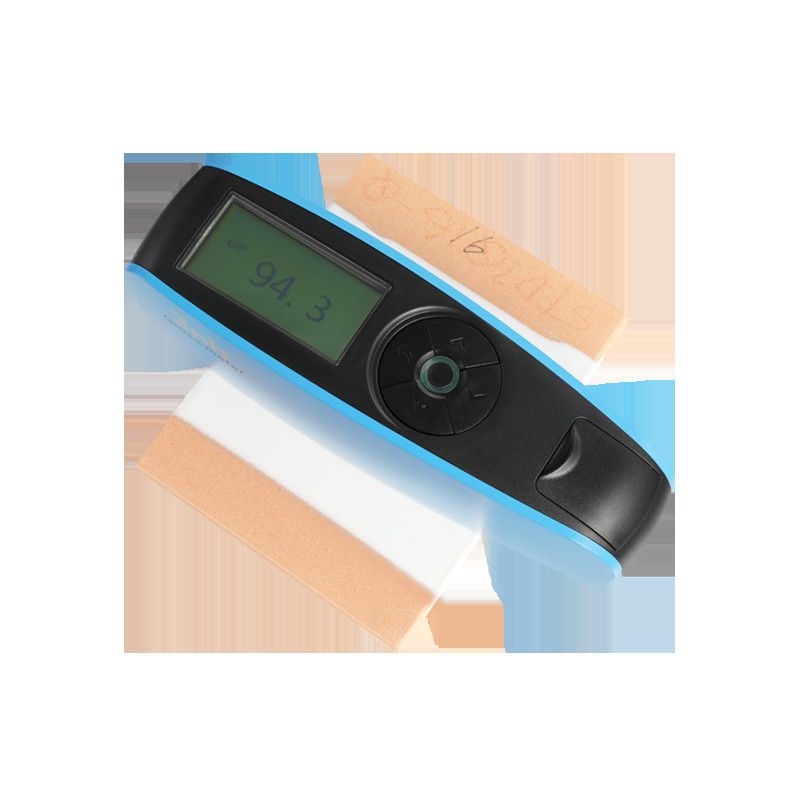

YG60 Gloss Meter
YG60 60°Accurate Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.

YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.

Product Features:

1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.

Model	YG60 60°Accurate Gloss Meter
Measuring Angle	60°
Measuring Range	60°: 0-1000GU
Division Value	0.1GU
Measuring Modes	Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time	0.5S
Repeatability	0~100GU : ±0.2GU; 100~1000GU : ±0.2%GU
Accurate	Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time	Within 30s-120s
Long-time Calibration	Automatically check and made the calibration
Language	Chinese & English
Storage	35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display	2.3 inch white and black screen
Size	1605284mm
Weight	About 300g
Power Supply	1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface	USB & Bluetooth 2.1 version
PC Software	GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range	0-40℃（32-104° F）
Storage Temperature Range	-20-50℃（-4-122° F）
Humidity Range	< 85% RH, without condensation
Standard Accessories	USB cable, user manual, calibration plate, QC software
Optional Accessories	Miniature printer,Bluetooth
Notification: the technical parameter is only for reference

Application

Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, hardware, ceramic, marble etc.

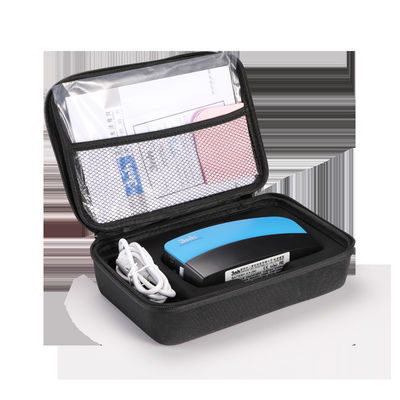

Product packaging

Company Profile

Shenzhen 3nh/Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in color management field and color management field. After years of intensive research, 3nh has launched NH series colorimeter, NR series colorimeter, NS series spectrophotometer, ISO12233 resolution test chart, optical image test solution and specific standard illuminant. Our products are widely used in plastic, electronic, paint, ink, textile, garment, printing anddyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported all around the world. We can provide customization service which has been well received by customers.

3nh adheres to the business philosophy of "people-oriented, customer first, technological innovation, sustainable development" to meet customers' demands continuously, to create value for customers and to achieve a win-win situation and common development.

Certifications

Guangdong Threenh Technology Co.,Ltd.passed CE, ISO 9001, ROHS, FCC, TUV certifications.

Exhibition

We join all over the world exhibitions, including China plas, China coating, Printing and Packaging, and CIOE etc.

FAQ

Frequently Asked Questions
1. Which brands are 3nh models to equal?
Answer: 3nh color test instruments compared with KONICA MINOLTA and X-rite and BYK.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. We offer OEM&ODM service for free.
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
